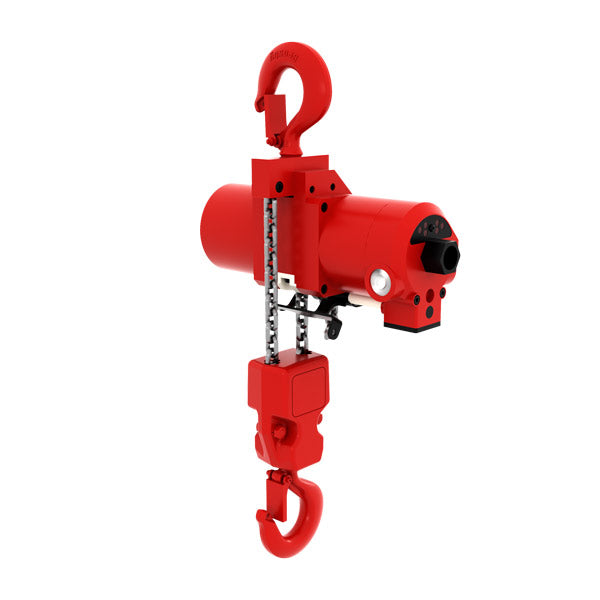

Red Rooster TCR 500-2 Mini Air Hoist - Pneumatic

The Red Rooster TCR 500-2 Mini Air Hoist is a comprehensive Pneumatic Chain Hoist suited to all types of industrial and marine environments. The Red Rooster TCR 500-2 Mini Air Hoist is the perfect lifting solution for where the duty is high, or where a robust hoist is required to with stand harsh conditions. The Red Rooster TCR 500-2 Mini Air Hoist complies with the European Machinery Directive and is CE marked.

NOTE: If you require a different size Air Chain Hoist or a hoist with a Power Trolley etc please contact us directly as we have a variety of Pneumatic Chain Hoists.

Red Rooster TCR-500/2 Mini Air Hoist
Classification: Ex Group II 3 G Ex h IIA T4 Gc, Ex Group II 3 D Ex h IIIA T135°C Dc.
Capacity (SWL): 500kg.
Lift Height: 3.0 m.
Chain Falls : 2.
Chain Size: 4 X 12mm.
Lift Speed (full load): 4.6 m/min.
Lift Speed (no load): 9.5 m/min.
Air Consumption : 13 litres / second @ 6.3 Bar.
Air Connection: 1/2" BSP, Min Hose Dia. 1/2".
Standard Features: Aluminium Housing Upper & Lower Limit Switches
Failsafe Automatic Internal Disc Brake Includes: 2.0 m Pendant Control c/w Emergency Stop.
1/2" Filter Lubricator Regulator c/w Gauge.
Chain Collector.
Documentation: Certificate of Test & Thorough Examination, EU Declaration of Conformity, Safety Instructions, Instruction Manual.

We provide online training for this product. Learn more about this Pneumatic Hoist course.

NOTE: If you require a different size Air Chain Hoist or a hoist with a Power Trolley etc please contact us directly as we have a variety of Pneumatic Chain Hoists.
