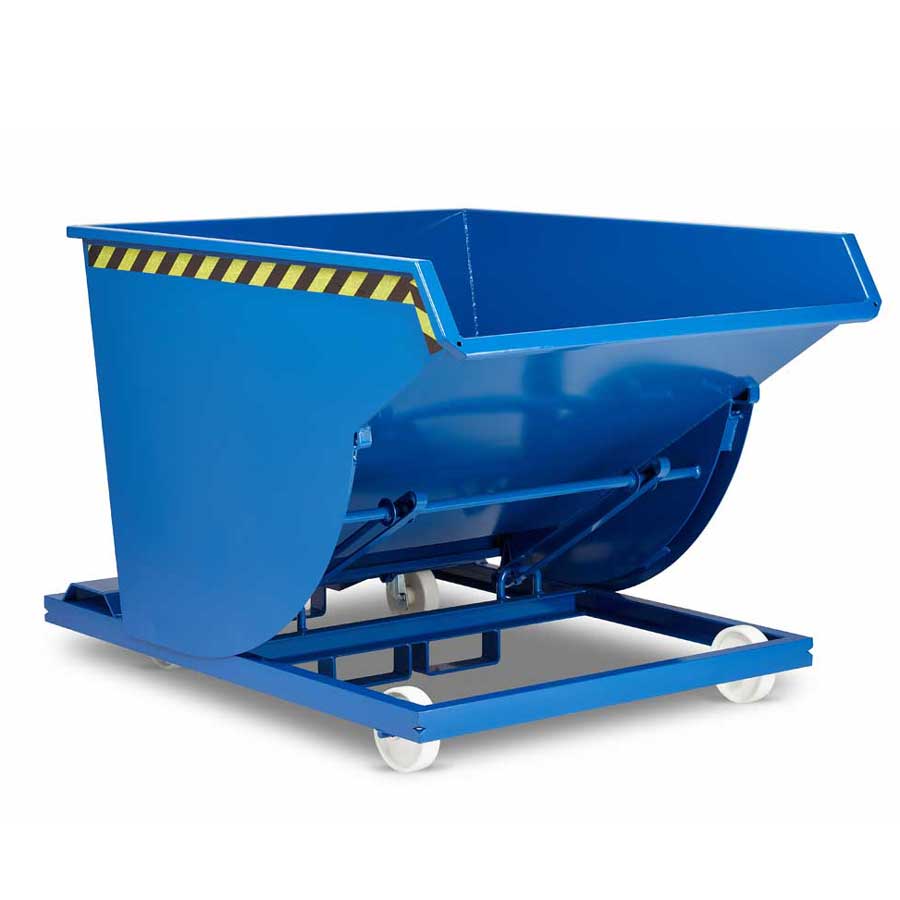

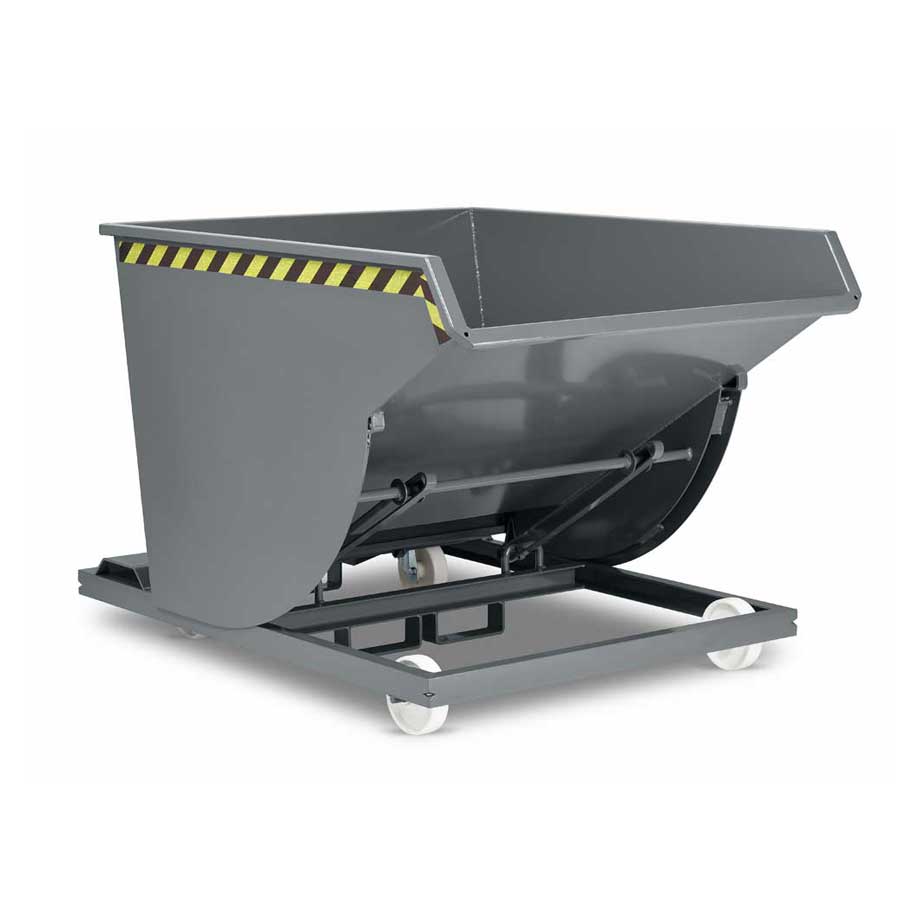

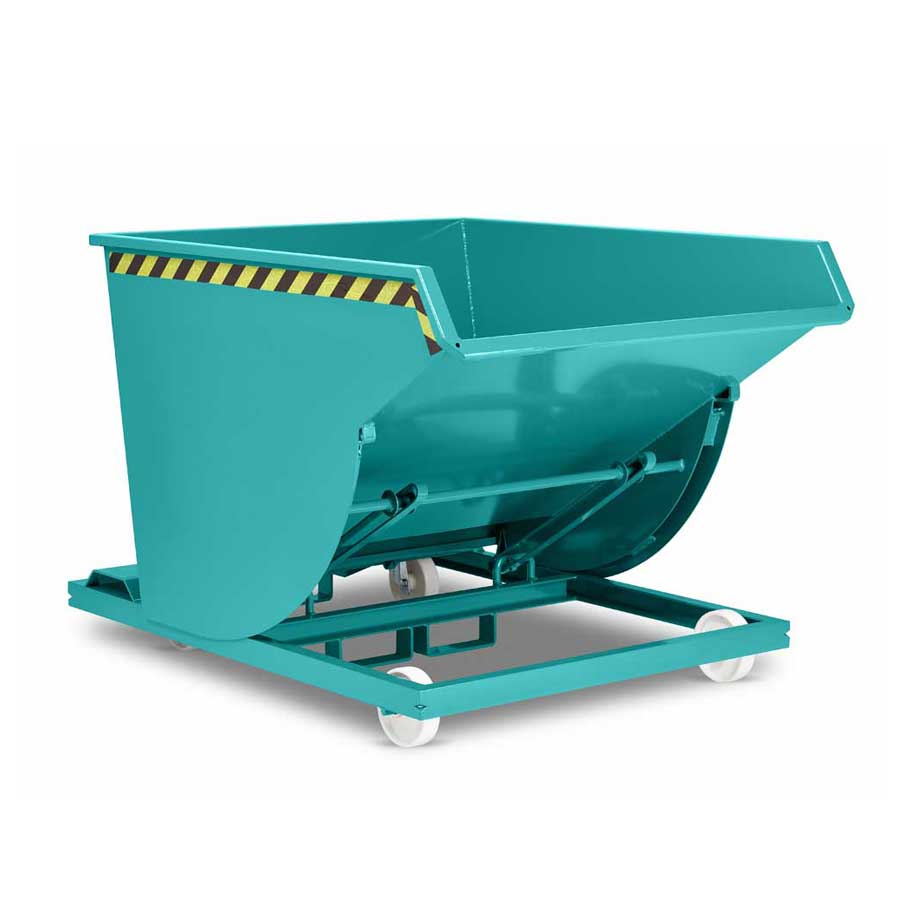

RR-Industrietechnik RSK- S Forklift Chip Tipping Skip

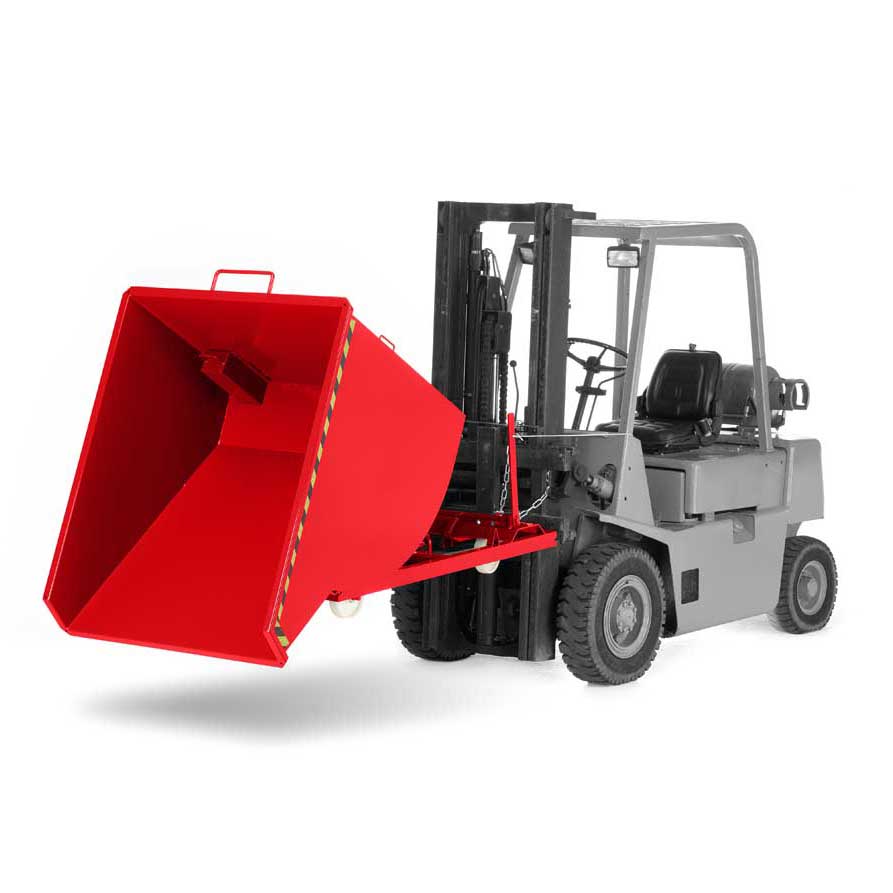

The RR-Industrietechnik RSK-S Forklift Chip Tipping Skip has a sieve block insert and a drain cock for separating liquids from solids. The sieve can be easily removed for cleaning. The emptying process is straightforward. When the cable pull is released, for example from a forklift truck, the skip automatically swings forward, empties, swings back and locks again. The tipping process runs via roll-off skids, which enables tipping that is gentle on forklifts. The forklift tipping skips are available with volumes from 300 to 1000 litres and are welded to be oil- and watertight. An additional chain safety device prevents slipping off the forks, which must have a minimum length of 800 mm. Due to a 3 mm steel plate with all-round edge reinforcement and a base frame construction made of U-profile with cross reinforcements, the self-tipper is very durable and robust. Due to integrated rollers in the chassis, the tipper achieves an extremely low overall height even with a wheel set.

Features & benefits include:
• Despite wheel set, the tipper achieves an extremely low overall height, as the rollers are integrated in the chassis frame
• Forklift-friendly tipping via roll-off skids
• Required minimum fork length of the truck: 800 mm
• Equipped with a chain safety device which prevents the chain from slipping off the tines
• Unlocking by cable from the forklift seat
• Hutch made of 3 mm steel plate, base frame made of 6 mm U-profile with cross reinforcements
• Powder-coated or hot-dip galvanized options available
• Comes with yellow/black warning stripes according to ASR A 1.3
• Includes a sieve block insert and drain tap
• Optionally with 2-part galvanized hinged lid
