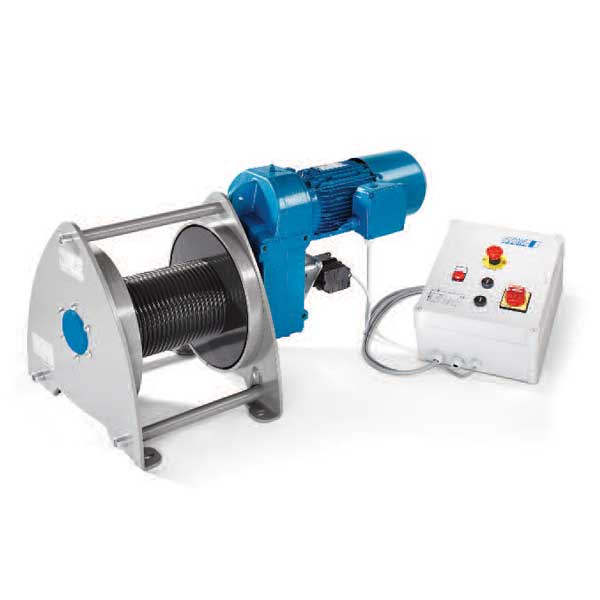

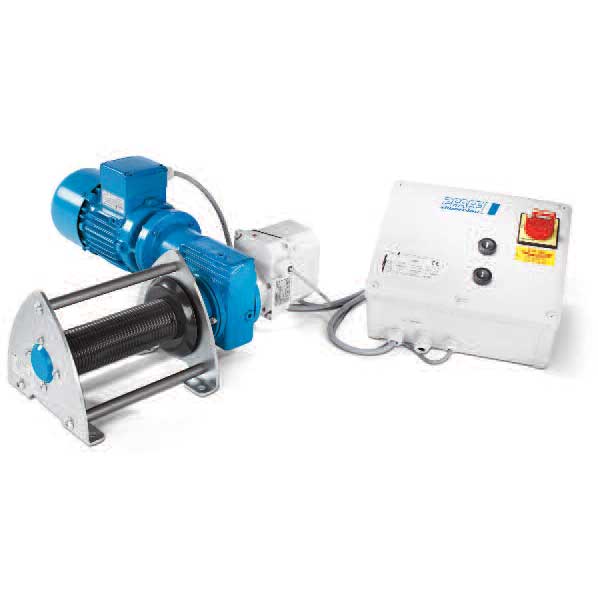

Pfaff BETA SL Electric Wire Rope Winch

BETA SL Electric winches with capacities ranging from 250 - 2000kg.

Short delivery times are followed by long periods in operation: the electric wire rope winch BETA SL in its standard design works permanently reliably due to enclosed worm gear pairs or spur gears with high-quality brake motors. The electric wire rope winches BETA SL are available with a contactor control system including a gear limit switch.

Features and benefits include:
- Maintenance-free worm gear pairs or low-maintenance spur gear with milled and ground gears - running in an oil bath
- Very quiet running by diagonal interlock
- Electrically released spring-applied disc brake
- According to the accident prevention provisions BGV D8
- Range of temperature: -20°C – +40°C
- Powerful three-phase motor for multi-range voltage 380 – 420V / 50Hz or 440 – 460 V / 60Hz
- Electronic overload protection on units over 1000kg
- Range of temperature: -20°C – +40°C
- Duty ratio S3 – 40%
- Motor protection type IP55
- Grooved rope drum
- Large wire rope capacity
- Contactor control 42V
- Gear limit switch

Recommended rope: DIN 3069 FE-znk-1960 sZ-spa • All Pfaff winches are supplied WITHOUT wire rope.
