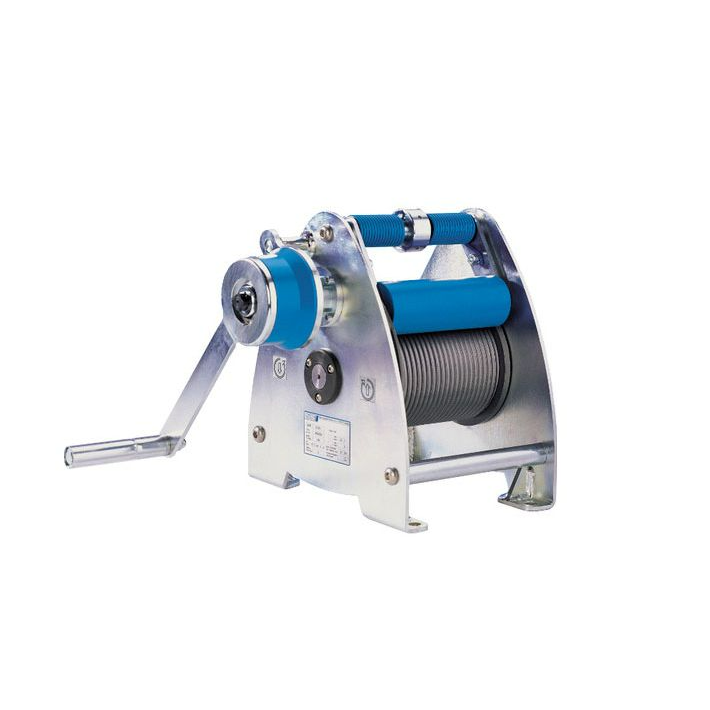

The compact wire rope winch for applications on stages, in studios, theatres, etc has a capacity of 300kg.
Features & benefits include:
•State-of-the-art design with galvanized side sections for easy handling.
• Grooved drum for single-layer winding of the steel rope. An 18:1 ratio between drum and rope diameter increases the service life of the rope substantially.
• With spring-loaded rope pressure roller to prevent the unloaded rope from jumping off the drum.
• Gear rated for twice the nominal load.
• Spur gear drive for optimal efficiency and comfortable handling.
• The fitted safety crank with two spring brakes acting independently of each other for safe holding of the load in any position.
• In compliance with DGUV Vorschrift 17 (BGVC1) and DIN 56925. Certified by the German committee for lifting equipment (GS-approval-tested safety).
• Drum extension for a larger rope capacity.
• Special grooves (several layers).
Contact us for optional extras
*Recommended wire rope: DIN 3060 FE-znk 1770 sZ-spa. All Pfaff winches are supplied WITHOUT wire rope.
Wire rope sold separately. -
Brand:
Useable rope capacity - 1st layer options: 10m
15mLifting capacity - upper layer: 300kg Wire rope diameter: 6mm Lift per crank rotation: 50mm Required crank pressure: 18 daN Documentation: CE Marked and comes with Certification
-
