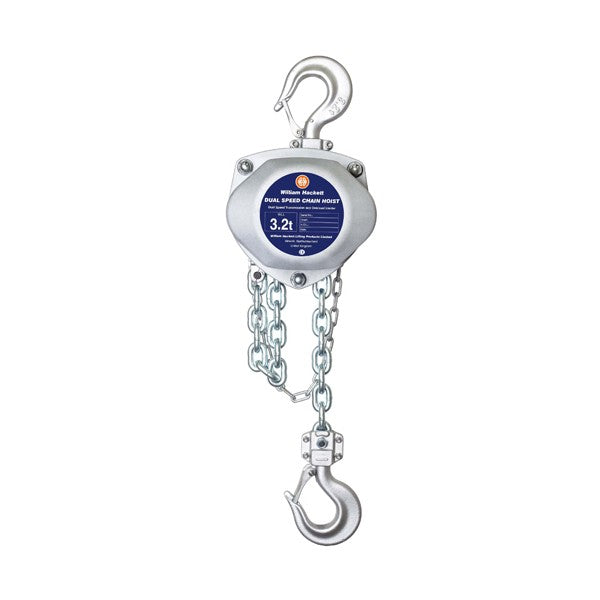

William Hacket Dual Speed Chain Hoist

The William Hackett dual speed chain hoists can lift and lower the load chain 5 times faster than a regular chain hoist when it does not have a load.

Features:
• Working Load Limit Range: 3.2 ton - 50 ton
• Light Load Capability: tested and certified at 2% of the chain hoist rated capacity
• Twin Pawl: double safety; fitted as standard.
• Safety Factors: 4:1.
• Speed: when the hoist is loaded, the lifting and lowering speed will be the same as a regular chain hoist however, the load sensing automatic speed transmission enables the hoist to travel 5 times faster than a regular chain hoist when not under load.
• Safety Latches: hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure. • Hook Overload and Traceability Marks: hooks have overload indicator marks either side of the hook throat.
• Hand Chain Joiner: a unique hand chain joiner is used as a quick and secure method of joining the hand chain.
• Hook Housing: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
• Fleeting/Cross Hauling: independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical without deration of the WLL.
• Load Chain: fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
• Temperature range: -40°C to +120°C.
• Proof Tested: 3.2 to 10 tonne hoists are proof tested to 1.5 times the Working Load Limit. 15 tonne to 50 tonne are proof tested to 1.25 times the Working Load Limit.
• Overload Limiter: fitted as standard.

The William Hackett dual speed chain hoist meets and exceeds the requirements of the following international standards: British Standard BS EN13157:2004 + AI:2009. American Standard ASME B30.16-2014. Australian Standard AS1418.2-1997. South African Standard SANS 1594:2007. NORSOK R-002: 2017.

We provide online training for this product. Learn more about this Manual Chain Hoist course.
