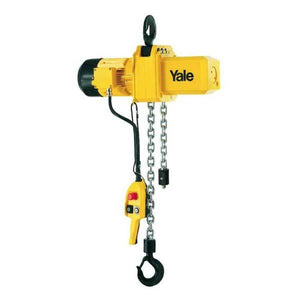

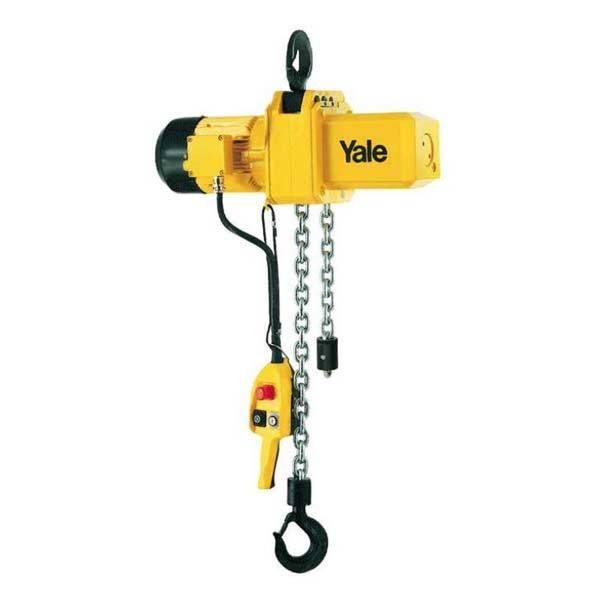

Yale CPE Electric Chain Hoist with Top Hook and Chain Bag

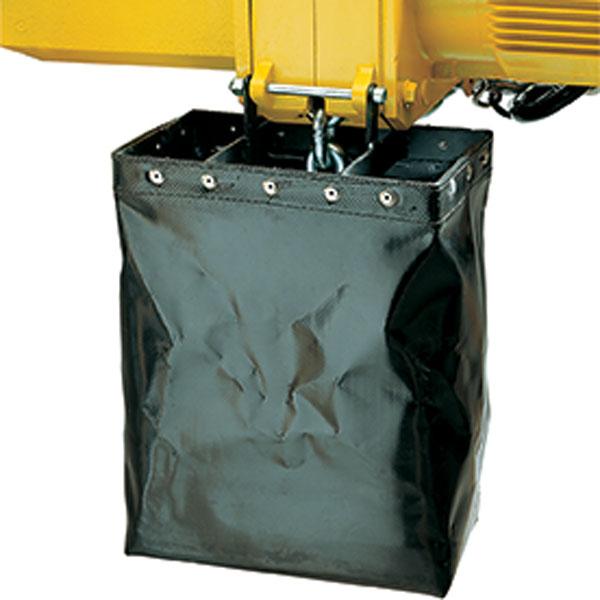

The Yale CPE electric chain hoist combines modern design and technical innovation. The CPE/F series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes servicing easy. All of our Electric Chain Hoists include slack chain bags, which is included in the price.

NOTE: If you require a different size Electric Chain Hoist please contact us directly as we have a variety of Electric Chain Hoists .

Features & benefits include:
• The standard, oil bath lubricated planetary gear box is particularly smooth running and provides for a low overall height.
• Low voltage control (42volt).
• The 5-pocket load wheel, manufactured from wear resistant case hardened steel is matched perfectly to the load chain to guarantee smooth and precise chain motion.
• Motor fitted with bimetallic thermal protection used with low voltage control.

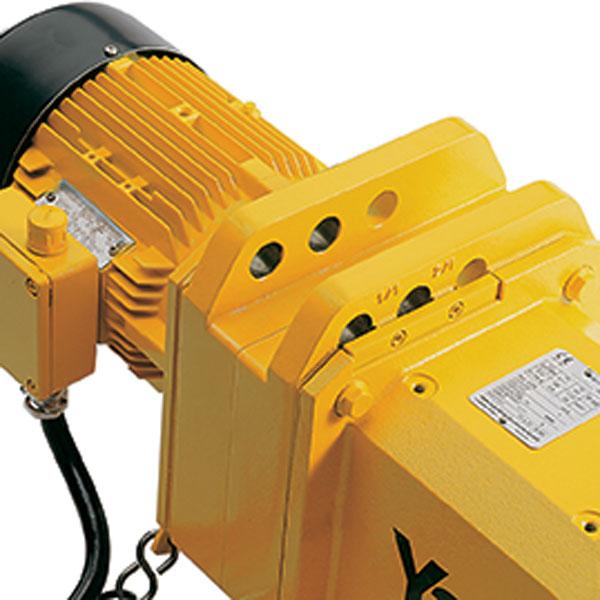

• The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load securely even in the event of a power failure.
• Case hardened and zinc plated link chain.
•The motor is designed for high duty cycle.
• 400V, 3-phase, 50 Hz eurovoltage.
• Duty cycle 40% ED for single speed.
• Motor protected to IP54, insulation class F.
• Operating temperature -100 to +500.
• The model CPE/F 100-2 consists of two CPE/F 50-2 units that are connected by a framework.
• Limit switches available on 1.6t to 7.5t only.
