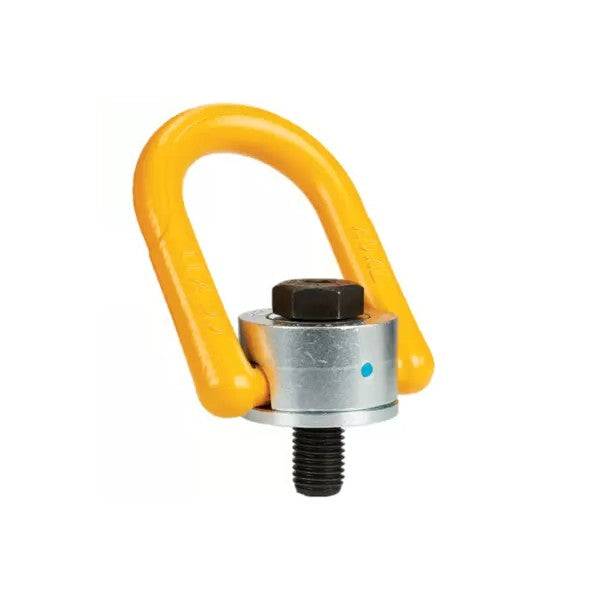

Yoke Swivel Hoist Ring Metric Thread
The Yoke Swivel Hoist Ring Metric Thread has a new generation swivel hoist ring. With a lower profile and higher weight, it is suitable for lifting objects with no obvious load attachment points. It is used for mold and die handling, in addition to pump and valve handling.
Product Features
- Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
- Manufactured from forged alloy steel, quenched and tempered and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected & the individual forged parts & cap screw are traceable to Test Certification.
- Bolts are Metric thread 10.9.
- Proof tested to 2.5 times the WLL and Fatigue rated to 1.5 times the WLL.
- Design Factor 4 : 1
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required.
Contact us for extended lengths -
Brand:
Mobility: Rotates through 360° adjustable in the direction of the load Design factor: 4:1 Documentation: CE Marked and comes with Certification -
Specification sheet:
