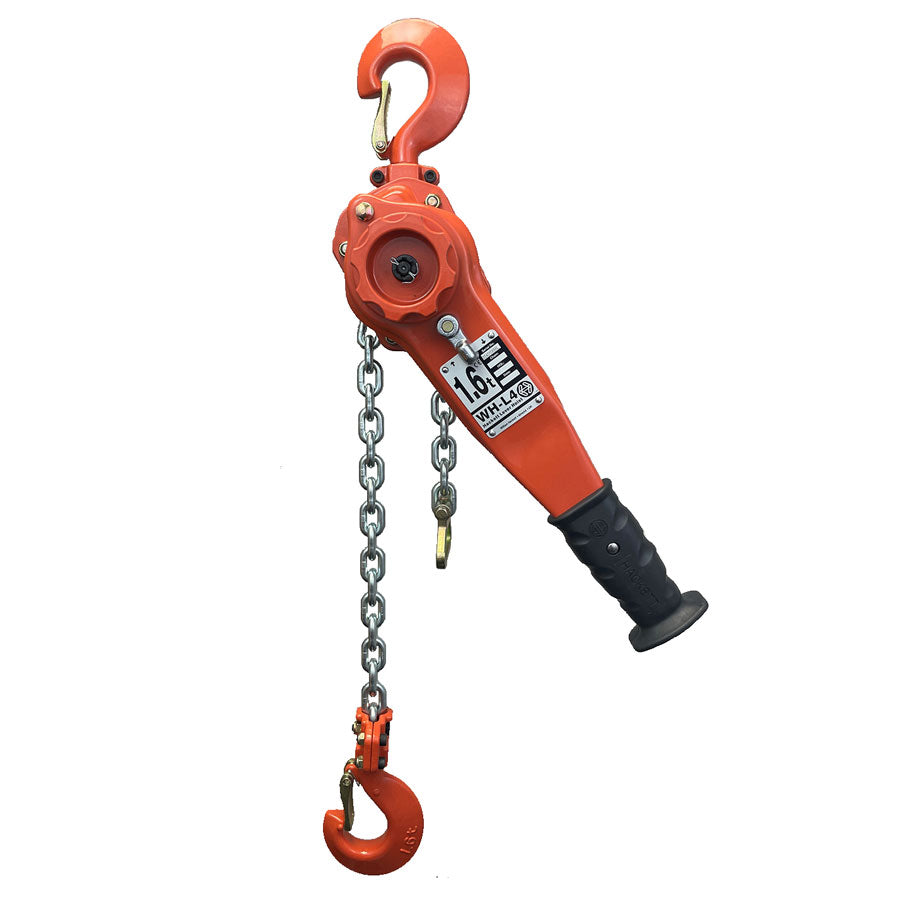

William Hackett L4 Lever Hoist with Shipyard Hooks

The William Hackett WH L4 lever hoist c/w shipyard hooks are designed for use in shipyards, fabrication facilities, upset welding, pulling angle iron and other applications.

Features:
• Working Load Limit: 1.6t and 3.2t.
• Light Load Capability: the WH L4 c/w shipyard hooks is tested and certified at 2% of the lever hoist rated capacity.
• Twin Pawl: double safety; fitted as standard.

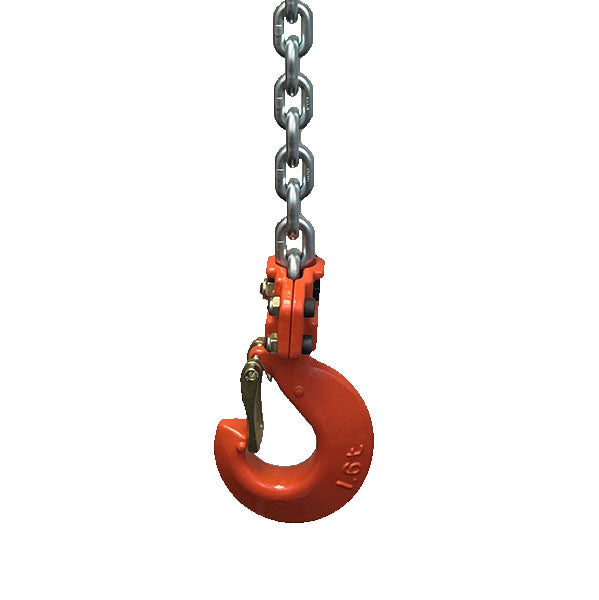

• Safety Latches: The hoist top and bottom hooks are fitted with heavy duty cast steel latches.
• Hook Housing: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
• Fleeting/Cross Hauling: the WH L4 lever hoists c/w with shipyard hooks are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
• Load Chain: the hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
• Temperature range: -20°C to +120°C .
• Proof Tested: Hoists are proof tested to 1.5 times the Working Load Limit.
• Overload Limiter: available as an option upon request.
• For use in shipyards, fabrication facilities, upset welding, pulling angle iron and other applications.

The Hackett WH L4 lever hoist c/w shipyard hooks meets and exceeds the requirements of the following international standards:
• British and European Standard BS EN13157:2004 + AI:2009.
• American Standard ASME B30.21-2014.
• Australian Standard AS1418.2-1997.
• South African Standard SANS 1636:2-2007.
• NORSOK R-002: 2017.

We provide online training for this product. Learn more about this Lever Hoist course.
