William Hackett L4 Lever Hoist with Shipyard Hooks

SKU: WH- L4 033.160.SY | 1.5m

Price:
€784.00 (ex vat)
€964.32 (inc vat)

Instant access to training. Products typically dispatched within 3 working days—see shipping policy*

Products include a certificate. Training provides a certificate upon completion

Bank Transfers accepted (Contact Us)

Description

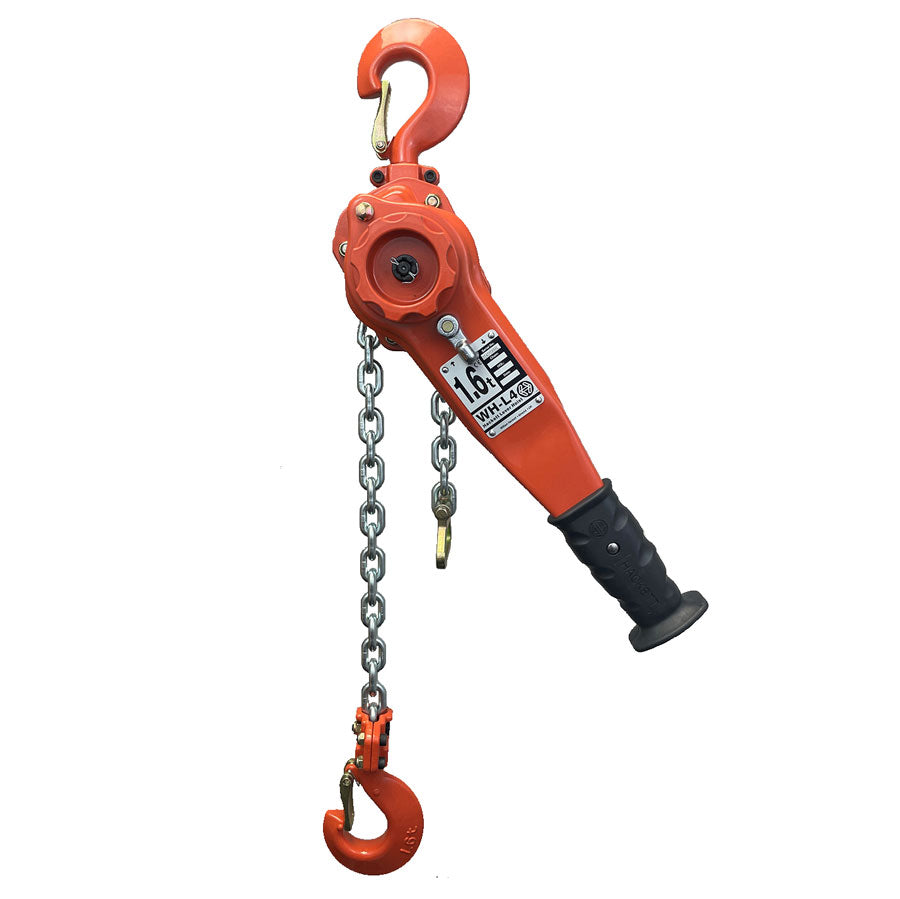

  • The William Hackett WH L4 lever hoist c/w shipyard hooks are designed for use in shipyards, fabrication facilities, upset welding, pulling angle iron and other applications.

    Features:
     Working Load Limit: 1.6t and 3.2t.
     Light Load Capability: the WH L4 c/w shipyard hooks is tested and certified at 2% of the lever hoist rated capacity.
     Twin Pawl: double safety; fitted as standard.

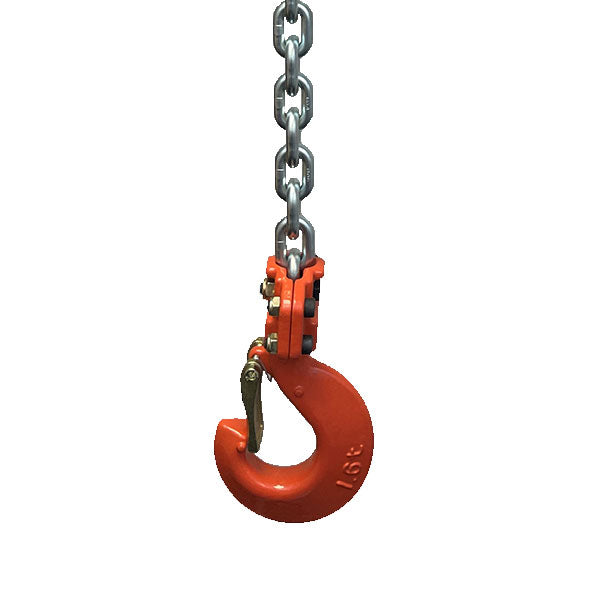

     Safety Latches: The hoist top and bottom hooks are fitted with heavy duty cast steel latches.
     Hook Housing: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
     Fleeting/Cross Hauling: the WH L4 lever hoists c/w with shipyard hooks are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
     Load Chain: the hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
    • Temperature range: -20°C to +120°C .
     Proof Tested: Hoists are proof tested to 1.5 times the Working Load Limit.
     Overload Limiter: available as an option upon request.
     For use in shipyards, fabrication facilities, upset welding, pulling angle iron and other applications.

    The Hackett WH L4 lever hoist c/w shipyard hooks meets and exceeds the requirements of the following international standards:
     British and European Standard BS EN13157:2004 + AI:2009.
     American Standard ASME B30.21-2014.
     Australian Standard AS1418.2-1997.
     South African Standard SANS 1636:2-2007.
     NORSOK R-002: 2017.

    We provide online training for this product. Learn more about this Lever Hoist course.
