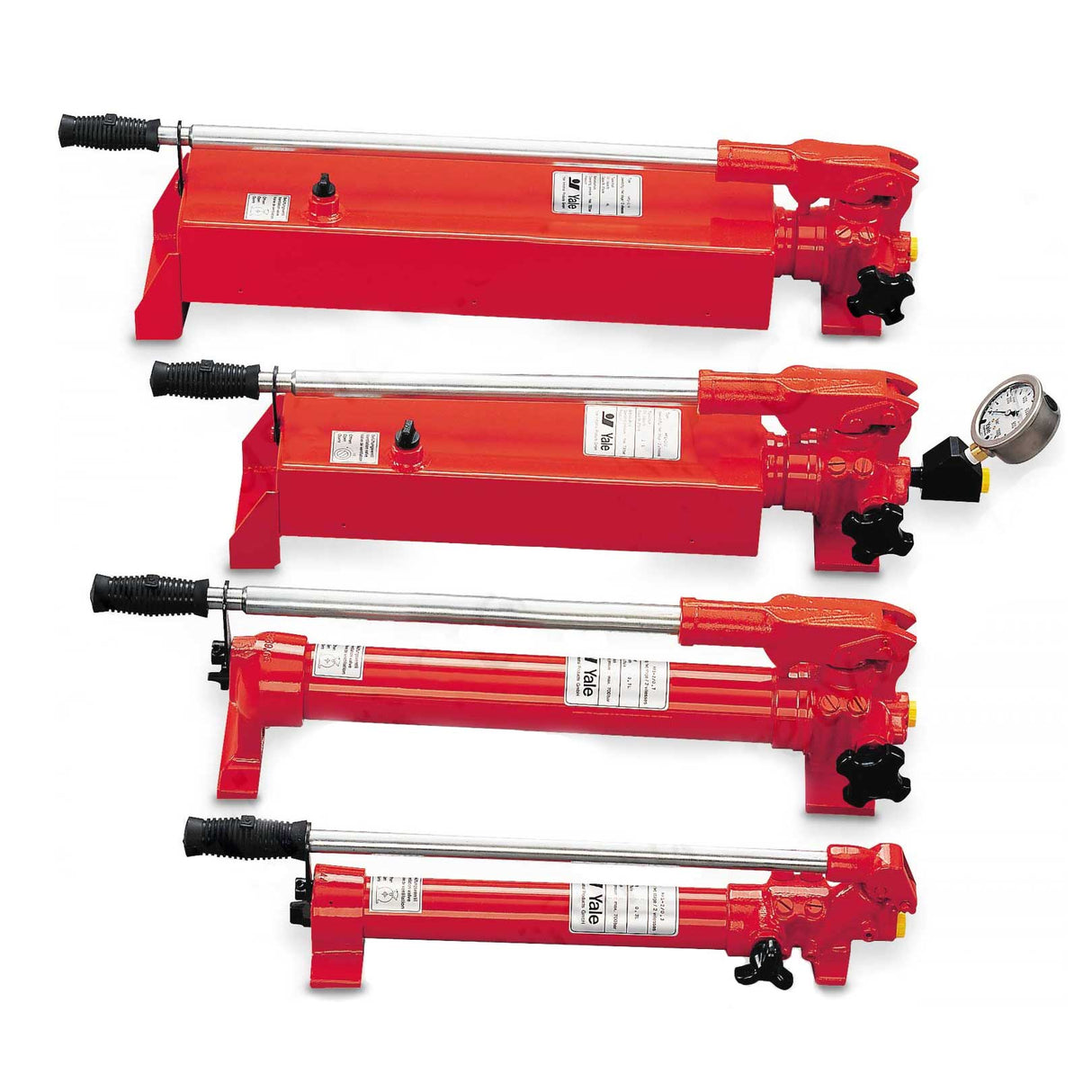

Yale HPS hydraulic hand pumps are easy to use and operate independently of any external energy source. They are designed for a maximum 700 bar system pressure and will allow each hydraulic cylinder to utilize its maximum capacity. The two-stage system reduces pumping time. Stage 1 allows rapid piston travel under no load or light load conditions. The pump automatically switches to stage 2 when the piston is loaded and a higher force is required from top. The hand pump is an all-steel construction designed for rough use and has a high-efficiency pumping action. The handle can be locked for easy carrying. The large and easy-to-control return valve allows the operator to precisely control the return stroke. Other standard features include a large and easy-to-control hand wheel, air bleeding and oil filling plug, large support feet for stability, tilted tank to increase usable oil volume and ergonomic handle grip.
Features and benefits include:
Operating pressure maximum 700 bar.
Two-stage operation with automatic switch-over (except HPS-1/0,7 A).
Large reservoir volumes.
With pressure relief valves, adjustable from the outside.
Precision-adjustable relief valve (handwheel).
Robust all-steel construction.
HPH-pumps are equipped with a 4-way control valve plus a precision-adjustable relief valve.
Oil port thread 3/8 NPT.
Includes oil filling.
Pressure gauges with corresponding adaptors are also available as accessories.
Brand: Model number: HPS
Options: HPS 1/0.7A: 700cm3 | Single Stage
HPS 2/0.3A: 300cm3 | Two Stage
HPS 2/0.7A: 700cm3 | Two Stage
HPS 2/2A: 2000cm3 | Two Stage
HPS 2/4A: 4000cm3 | Two Stage
HPS 2/6A: 6000cm3 | Two Stage
HPS 2/10A: 10000cm3 | Two Stage
Documentation: CE Marked and comes with Certification
