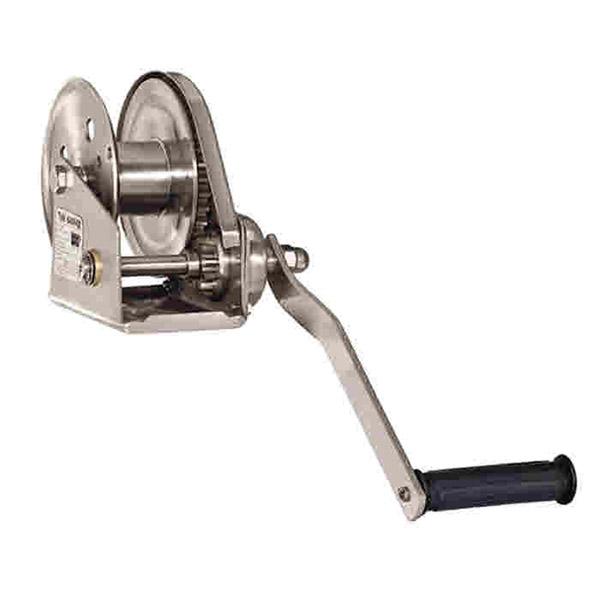

800daN Yale HW-CS80 Spur Gear Drive Stainless Steel Wire Rope Winch

SKU: HW-CS80
€503.00 (excl VAT) €618.69 (incl VAT)
View full description

Fast Despatch

Products typically despatched within 1-2 working days*

Compliance Training

Products include a certificate. Training provides a certificate upon completion

Flexible Payment

Bank Transfers accepted (Contact Us)

Highest Rated Supplier

We're trusted to deliver. 100's of 5 star reviews on Trustpilot.

Products Typically despatched:
1 - 2 working days* / Access Training Orders Instantly

  • The Yale HW-CS80 Stainless Steel Spur Gear Drive Wire Rope Winch has a maximum capacity of 800daN or approximately 815kg. The Spur Gear Drive Winches are suitable for the use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.

    Features & benefits include:
    • Winch housing and rope drum is made from stainless steel. Rope drum on bush bearings for flawless rope lead-off.
    • Spur gear drive for optimal efficiency.
    • Compact design.
    • Easy and quick mounting onto walls, poles, towers etc.
    • Pivotable handle.
    • Automatic load pressure brake for safe holding and extremely sensitive lowering of the load.
    • Unintentional brake release is prevented even with swinging loads.
    • The stainless steel design gives more protection against the elements faced when outdoors.
    • Suitable for operation in ambient temperatures of -100 to +500.

    Wire rope sold separately.

    • Brand:
      Model: HW-CS80
      Lifting/pulling capacity - 1st rope layer:
      		 800daN
      Lifting capacity - upper layer:
      		 400daN
      Crank effort 1st rope layer:      		 20daN
      Ratio:
      10:1
      Recommended Wire rope diameter:
      8mm
      Minimum breaking load of wire rope:
      43.8kN
      Maximum wire rope storage:
      15 meters
      Maximum number of rope layers:
      7
      Weight without wire rope: 10.1kg
      Documentation:
      CE Marked and comes with Certification




    • Specification Sheet: 800daN Yale HW-CS80 Stainless SteeSpur Gear Drive Wire Rope Winch
