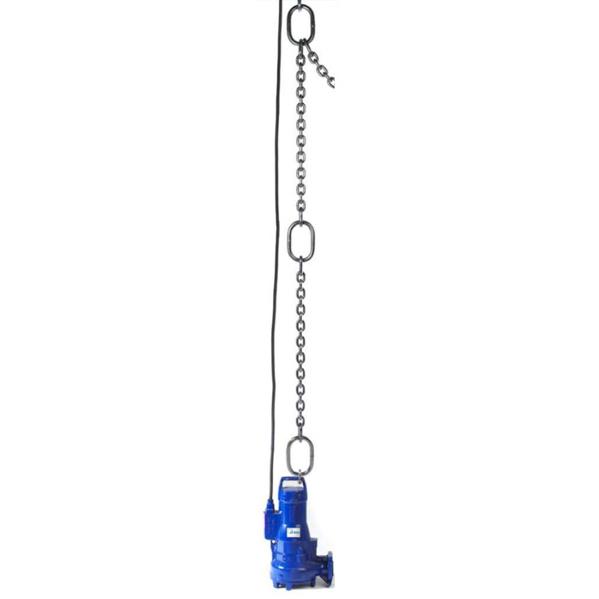

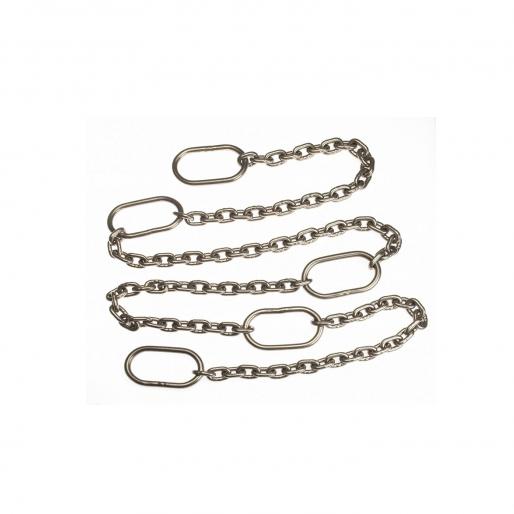

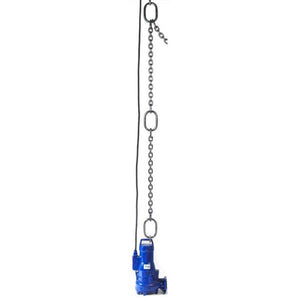

Our Grade 50, 316L Stainless Steel Lifting Pump Chains are a quality product for lifting and lowering of pumps and aeration devices for water and sewage. Fitted with index lifting points at each end and at 1 metre centres. All items are supplied tested and complete with relevant certification. It is equipped as standard with a SWL Tag (Safe Working Load) and Certificate that meet Local and National Safety Regulations.
Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
European manufactured Gr.50 316L Short Link Chain.
Assembled, Welded and Tested at our Cradley manufacturing site.
Full traceability for all components used in manufacturing process.
Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser.
Every Enlarged Link embossed with our manufacturing Batch Number.
All assemblies are Proof Load Tested to 2.5 x W.L.L.
Factor of Safety: 4:1.
For larger capacities, please call or email us.

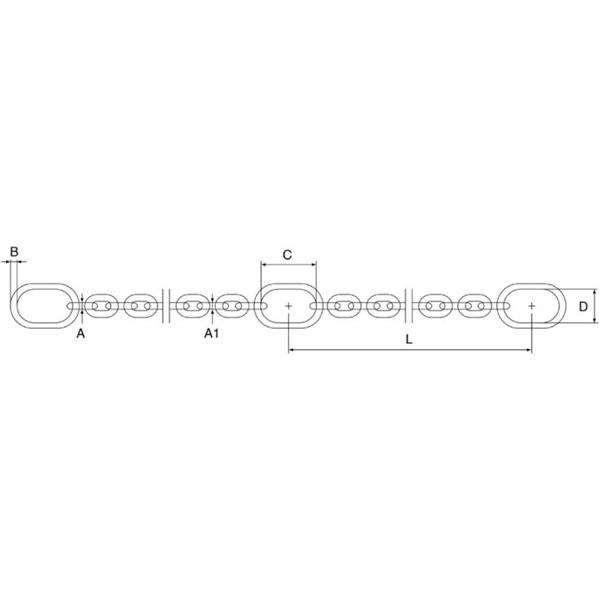

Capacity (W.L.L): 1000kg Effective Working Length (E.W.L) Options: 1 meter up to 12 meters Chain Diameter: 7mm A (See Specification Image): 8mm A1 (See Specification Image): 7mm B (See Specification Image): 13mm C (See Specification Image): 110mm D (See Specification Image): 60mm L (approx) (See Specification Image): 1000mm Documentation: CE Marked and comes with Certification
