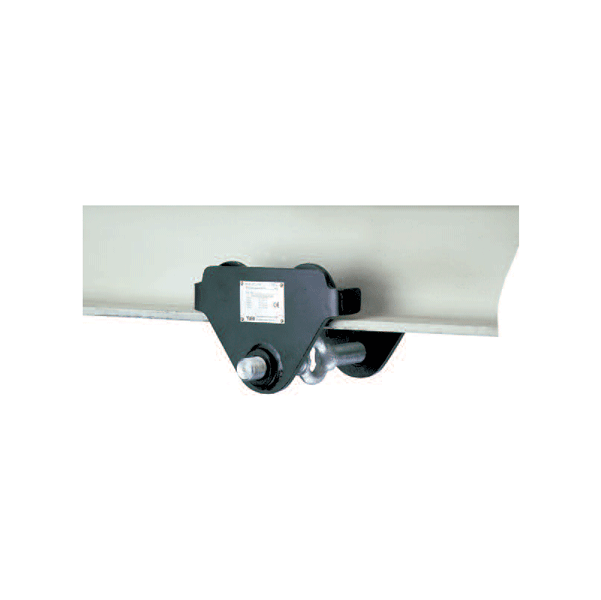

The Yale HTP push travel trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features: It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings. Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB). Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right. The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1). Trolleys are in accordance with the UVV and machinery directives.
Brand: Capacity: 1000kg Clamp Width Options: From 50mm up to 220mm
From 160mm up to 300mm
Documentation: CE Marked and comes with Certification
