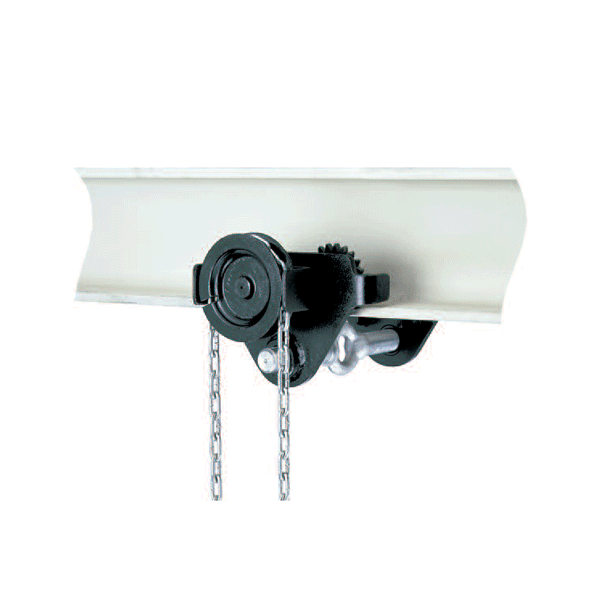

2000kg Yale HTG Beam Gear Trolley
2000kg Yale HTG Beam Gear Trolley - From 66mm up to 220mm / 2.5 meter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Despatch
Products typically despatched within 1-2 working days*
Compliance Training
Products include a certificate. Training provides a certificate upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Highest Rated Supplier
We're trusted to deliver. 100's of 5 star reviews on Trustpilot.
-
The 2000kg Yale HTG Beam Gear Trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. Like all our Gear Beam Trolleys, this beam gear trolley is certified and comes with documentation.
Features & benefits:
• It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
• Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
• Adjustments are made by rotating the clevis load bar which also ensures the centered positioning of the hoist in the clevis – no creeping to the left or the right.
• The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1).
• Trolleys are in accordance with the UVV and machinery directives.
2.5 meter zinc plated hand chain drop suits 3 meter height of lift.
Longer lengths available on request. Please contact us for quotation. -
Brand:
Capacity: 2000kg Hand chain drop options: From 2.5 meter up to 9.5 meter Clamp Width Options: From 66mm up to 220mm
From 160mm up to 300mmDocumentation: CE Marked and comes with Certification
-
Specification Sheet:
