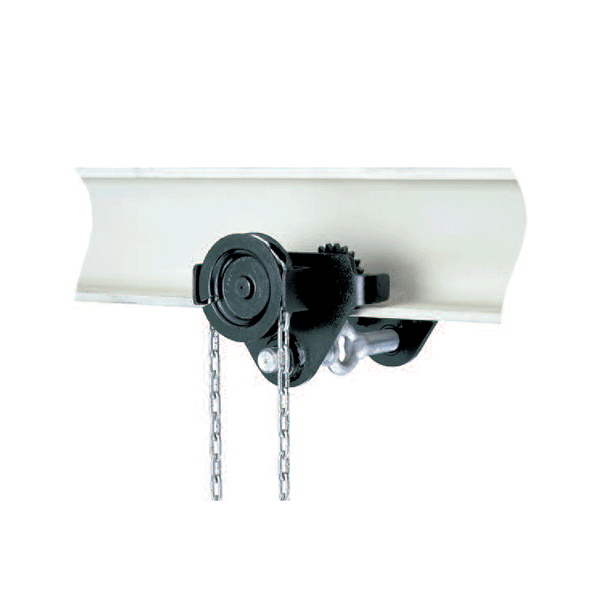

The 3000kg Yale HTG Beam Gear Trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. Like all our Gear Beam Trolleys, this beam gear trolley is certified and comes with documentation.
Features & benefits:
• It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
• Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
• Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
• The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1).
• Trolleys are in accordance with the UVV and machinery directives.
2.5 meter zinc plated hand chain drop suits 3 meter height of lift.
Longer lengths available on request. Please contact us for quotation.
Brand: Capacity: 3000kg Hand chain drop options: From 2.5 meter up to 9.5 meter Clamp Width Options: From 74mm up to 220mm
From 180mm up to 300mm
Documentation: CE Marked and comes with Certification
