Description

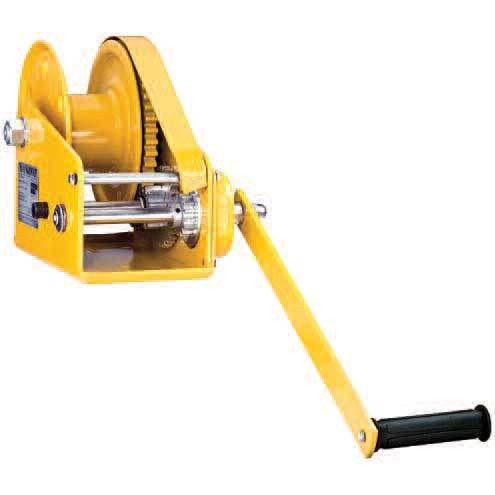

The Yale HW-C30 Spur Gear Drive Wire Rope Winch in Ireland has a maximum capacity of 300daN or approximately 305kg. The Yale HW Spur Gear Drive Manual Wire Rope Winch is suitable for the use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Features and benefits include:
- Winch housing and rope drum from robust steel plate for high versatility.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The wire rope winch comes with a high visibility, yellow powder coated finish as standard.
- Suitable for operation in ambient temperatures of -100 to +500
Wire rope sold separately
Specifications
| Brand: |
|
| Origin: | United Kingdom |
| Model: | HW-C30 |
|
Lifting/pulling capacity - 1st rope layer: |
300daN |
|
Lifting capacity - upper layer: |
120daN |
| Crank effort 1st rope layer: | 22daN |
| Ratio: | 4.2:1 |
|
Recommended Wire rope diameter: |
5mm |
|
Minimum breaking load of wire rope: |
13.6kN |
|
Maximum wire rope storage: |
20 meters |
| Maximum number of rope layers: |
9
|
| Weight without wire rope: | 3.8kg |
| Documentation: | CE Marked and comes with Certification |
| Specification Sheet: |  |
