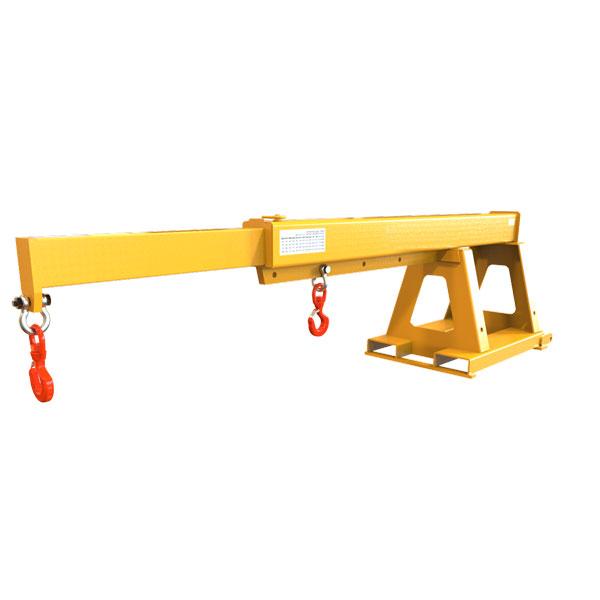

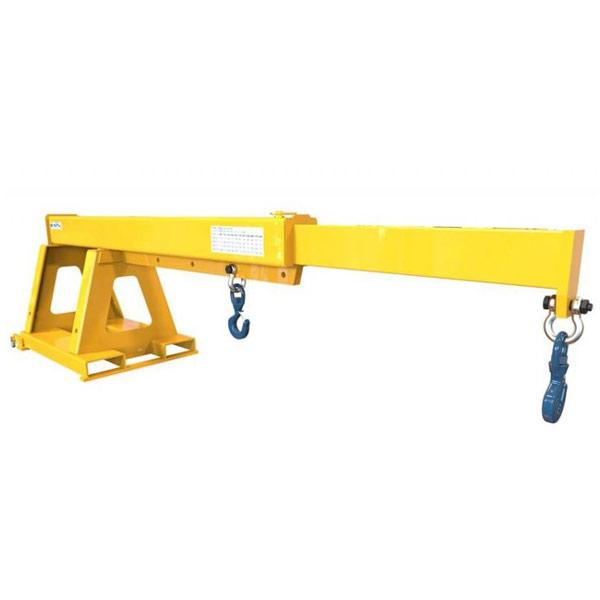

Offering the same characteristics as our standard raised height forklift jib, but with the added benefit of a manually extendable jib arm, our raised height extender jib gives an overall lifting reach of 3000mm (2000mm when closed), making it ideal for handling extra long loads. The raised beam height position of this forklift and telehandler jib also aids visibility for the forklift truck operator. Manufactured to the highest quality, the raised extender jib has eleven different lifting location points, making it suitable for a large variety of long load handling applications. The lifting capacity of the forklift jib is based on the forklift trucks capacity, therefore ensuring the lifting jib can be operated safely within the lifting limits of the forklift truck. With heel pin retention for safe securement to the forklift truck, and supplied with two hooks and shackles as standard, our raised extender jib is the ideal choice for extra long load handling, and like all our forklift truck attachments, will come fully tested and certified to comply with the latest Health & Safety Regulations.
Features & benefits include:
• Extends out to 3000mm (2000mm closed) to allow loads to be picked up from greater distances, thus reducing handling costs.
• Raised hook position for improved visibility whilst keeping hook off the ground when jib is left standing.
• Jib rated to suit the capacity of the lift truck, reducing wear and tear on the lift truck and possibility of overloading.
• Multiple hook positions for flexible load handling whilst reducing handling costs.
• Long jib arm to reach otherwise inaccessible places (i.e. machinery motors), helping to reduce factory maintenance costs.
• Large fork pockets for instant drive in fitting, making jib quick and simple to fit and remove from lift truck.
• Heel retaining pins to ensure the jib is safely and securely fastened to the lift truck forks.
• CE marked and supplied with Certificate of Conformity for Health & Safety Regulations.
Model Number(s): FMX 500-3.5 Jib Capacity(kg) @ Load Centre(mm): 460kg @ 3000mm Jib Capacity(kg) @ Load Centre(mm): 540kg @ 2750mm Jib Capacity(kg) @ Load Centre(mm): 670kg @ 2500mm Jib Capacity(kg) @ Load Centre(mm): 820kg @ 2250mm Jib Capacity(kg) @ Load Centre(mm): 900kg @ 2000mm Jib Capacity(kg) @ Load Centre(mm): 1000kg @ 1750mm Jib Capacity(kg) @ Load Centre(mm): 1300kg @ 1500mm Jib Capacity(kg) @ Load Centre(mm): 1600kg @ 1250mm Jib Capacity(kg) @ Load Centre(mm): 2000kg @ 1000mm Closed length: 2000mm Opened length: 3000mm Maximum Fork size: 125mm x 50mm Fork Spread: 546mm Number of lifting points: Nine Documentation: CE Marked and comes with Certification
