Description

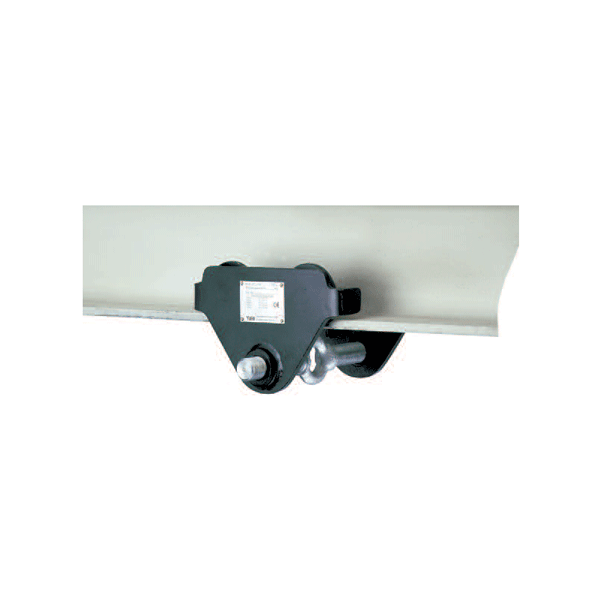

The Yale HTP push travel trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features:
-
It has excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
- Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
- Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
- The trolley wheels are designed for a maximum beam profile incline of 14 % (DIN 1025 - part 1).
- Trolleys are in accordance with the UVV and machinery directives.
Specifications
Brand: |
![]() |
Origin: | Germany |
Capacity: | 5000kg |
Beam Width Option: | From 90mm up to 220mm |
Beam Width Option: | From 180mm up to 300mm |
Documentation: | CE Marked and comes with Certification |
Specification sheet: | ![]() |
