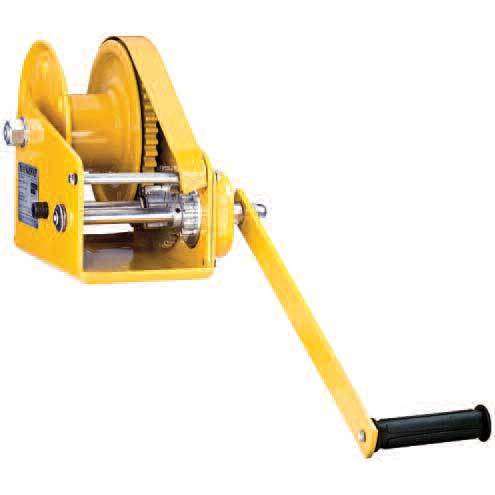

The Yale HW-C80 Spur Gear Drive Wire Rope Winch has a maximum capacity of 800daN or approximately 815kg. The Spur Gear Drive Winches are suitable for the use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Features & benefits include:
• Winch housing and rope drum from robust steel plate for high versatility.
• Rope drum on bush bearings for flawless rope lead-off.
• Spur gear drive for optimal efficiency.
• Compact design.
• Easy and quick mounting onto walls, poles, towers etc.
• Pivotable handle.
• Automatic load pressure brake for safe holding and extremely sensitive lowering of the load.
• Unintentional brake release is prevented even with swinging loads.
• The wire rope winch comes with a high visibility, yellow powder coated finish as standard.
• Suitable for operation in ambient temperatures of -100 to +500.
Wire rope sold separately.
Brand: Model: HW-C80Lifting/pulling capacity - 1st rope layer:
800daNLifting capacity - upper layer:
400daNCrank effort 1st rope layer: 20daNRatio:10:1Recommended Wire rope diameter:
Minimum breaking load of wire rope:
34.8kNMaximum wire rope storage:
Maximum number of rope layers:7
Weight without wire rope: 10.1kgDocumentation:CE Marked and comes with Certification
