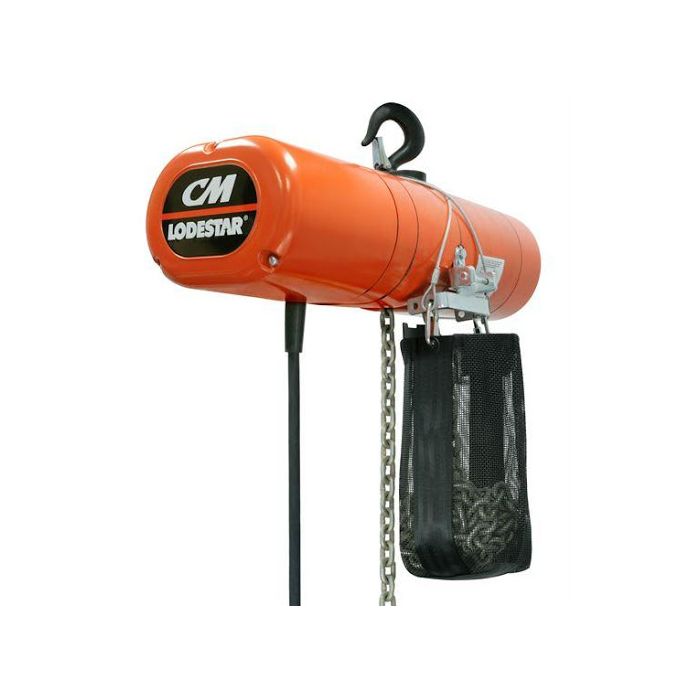

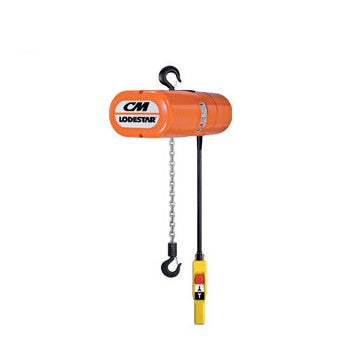

The CM Lodestar 110v electric chain hoist with top hook suspension is a tough and durable electric chain hoist, designed to keep working in the most arduous applications. These Electric Chain hoists are recognised and proven within the hire industry as the number one hoist, where high duty, combined with long heights of lift are required. From hook suspension in the rental industry to trolley mounted in a factory production line, the Lodestar has a proven reputation as the solution for industrial strength lifting.
Features & benefits include:

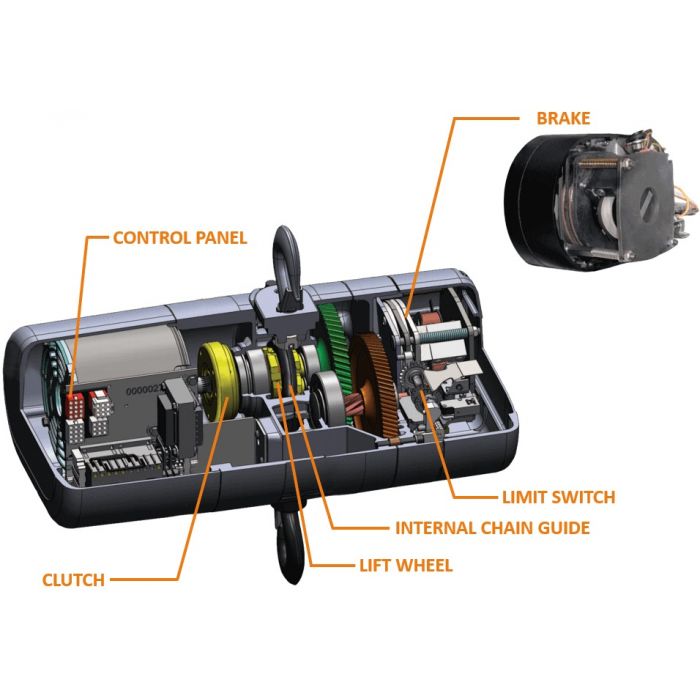

• Tough lightweight aluminum alloy covers totally enclose the mechanical and electrical components providing protection and efficient heat dissipation. The design enables easy access for installation and service.
• Adjustable upper and lower limit switches.
• 48v control, IP65 pendant as standard.
• Thermal overload protection as standard.
• FEM classification 2m (50% duty – 30 minutes continuous use per hour).
• Excellent closed height dimensions.
• A lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics.
• Single phase hoist supplied with handles and 1 meter supply cable with Cee-Form plug.
• 3 phase single speed hoist motors are dual voltage.
• Load hook with axial bearing.
Contact us for other options:
• Additional height of lift.
• Additional pendant length.
• Electric travel trolley.
• Weather-proof motor rain jacket.
• Wing bracket.
Images are for illustration purposes only, product may differ in appearance.
Brand: Capacity | Model options: 250kg | C
500kg | F
500kg | J
1000kg | L
2000kg | R
3000kg | RT
Suspension: Hook suspension
Documentation: CE Marked and comes with Certification
