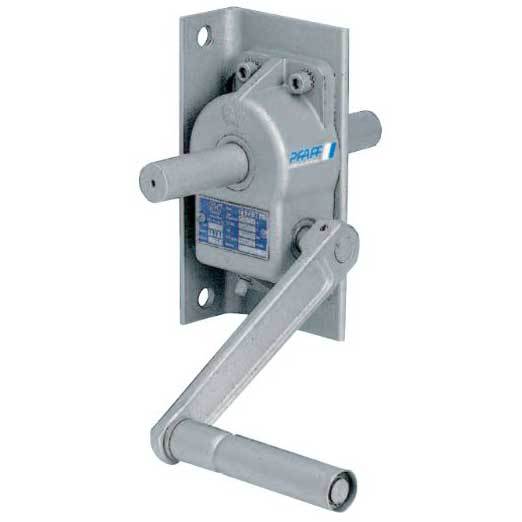

Pfaff S20 Hand Operated Gearbox

✔ In Stock
✔ Typically dispatched within 1 to 2 working days*
✔ A VAT Invoice will be emailed with your order
✔ Comes with Test Certificate

SKU: S20


ex vat


Drives: hand operated gearbox.

Can be used as a rotary actuator, as a gearbox for cable winches or as a gearbox for chain drives.

The worm gear drives are suitable for a large variety of applications in construction for moving or turning loads, as gears for rope drums or chain sprockets or slewing drives.

  • Enclosed housing for the protection of parts inside.
  • Enclosed and precisely machined gear for little effort and a long service life.
  • Easy and safe operation.
  • Load is held securely due to self locking worm gear.
  • Self locking.

With cast iron housing mounted into a rolled section fixing bracket. With machined worm wheel and hardened worm shaft running on bronze bushes.


    Origin: Germany

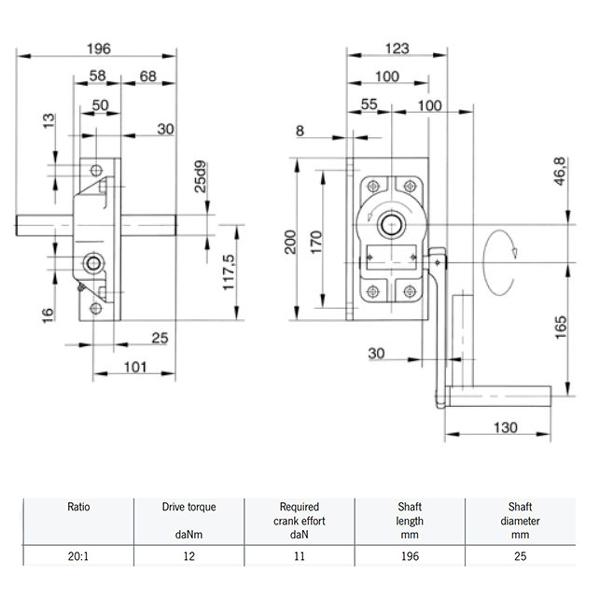

    Ratio: 20:1
    Driving torque: 12 daN m
    Effort on crank: 11kg
    Total shaft length: 196mm
    Shaft diameter: 25mm
    Hole distance: 170mm
    Hole diameter: 13mm
    Documentation: CE Marked and comes with Certification
    Specification sheet: pdf
