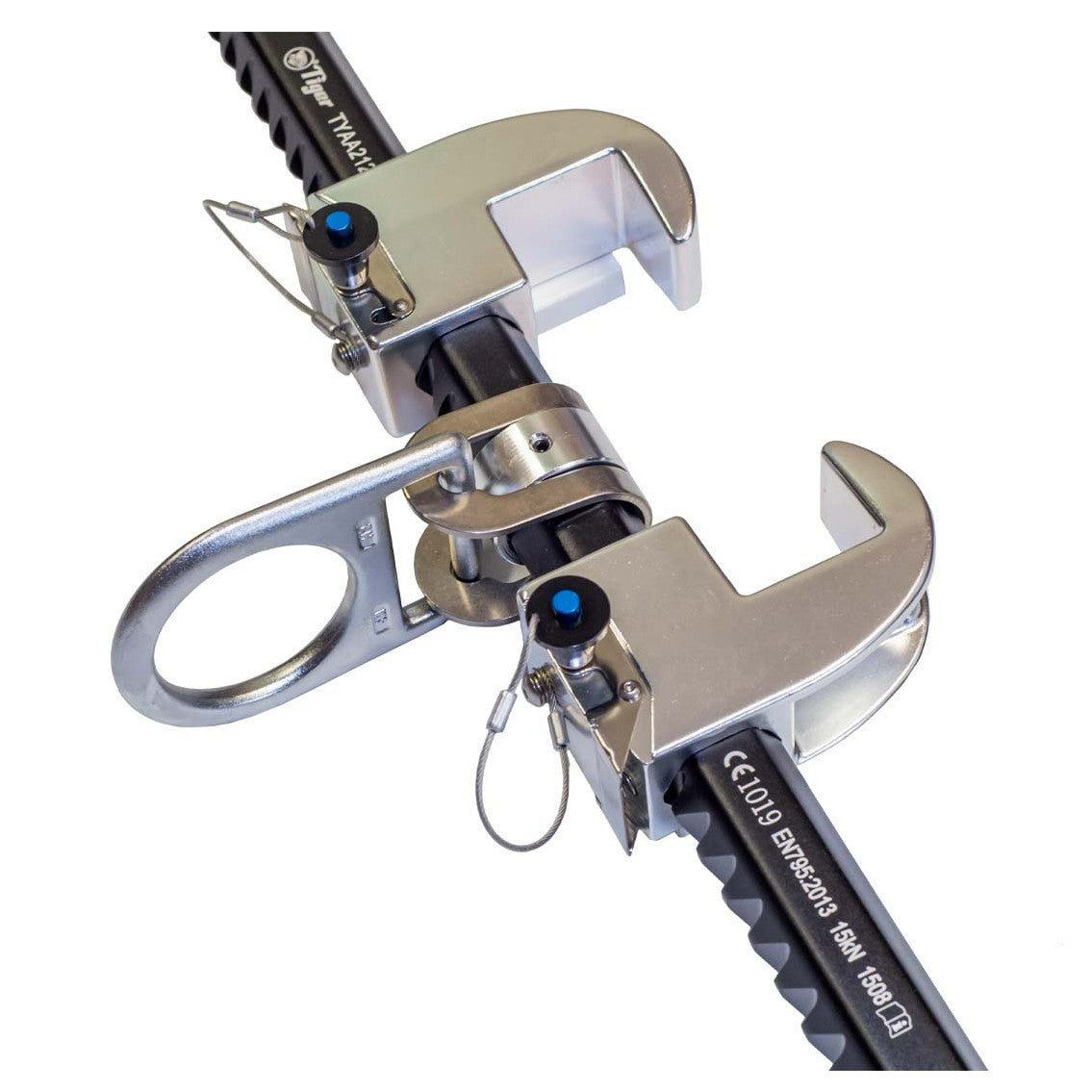

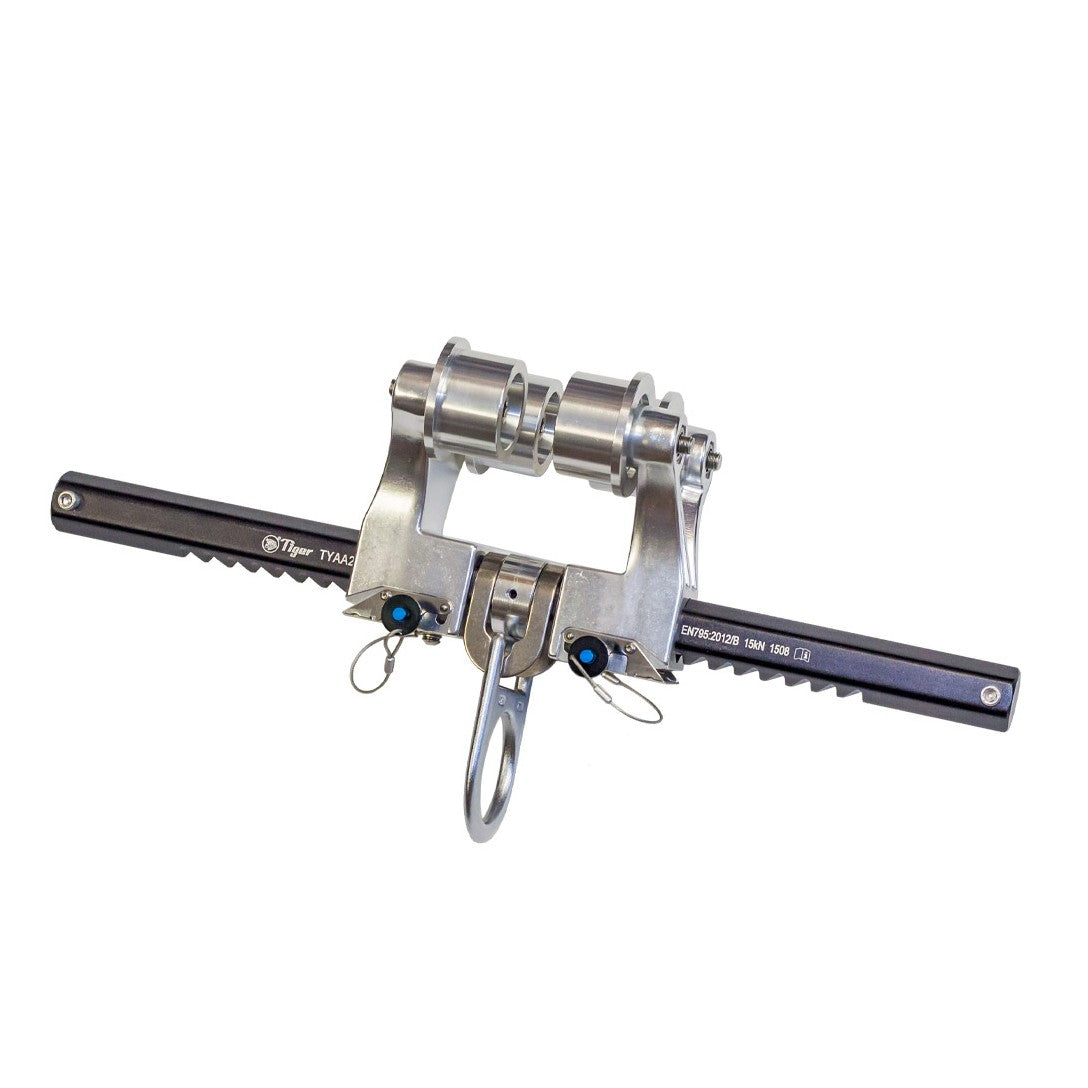

Tiger Beam Anchors - Mobile Rolling Type - Two-Jaw Sliding
Tiger Beam Anchors - Mobile Rolling Type - Two-Jaw Sliding - From 2.5 up to 12 inch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Shipping
Products typically dispatched within 1-2 working days*
Certification
Products include certification, and training courses issue certificates upon completion
Flexible Payment
Bank Transfers accepted (Contact Us)
Best Rated
Trusted across Ireland for lifting expertise and industry knowledge
-
Tiger Beam Anchors are used as anchorage connectors for personal fall arrest systems. They are designed to be attached to Horizontal I-Beams with an attached personal fall arrest system (full body safety harness, shock absorbing lanyard or fall arrest block). The Tiger single jaw sliding clamp can also be attached to Vertical I-Beams (see model TYAA14).
These units meet the requirements of EN 795:2012/B and ANSI/ASSE Z359.1-2007 and are CE Certified - CE 1019.
Features & benefits:
• Anchorage connectors for personal fall arrest systems.
• Quick and versatile anchorage point for personal fall protection equipment.
• Unit weight from 3.0kg – 3.5kg.
• Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne).
• Beam width ranges 2.5" to 24", 6.35cm to 60cm. -
Brand:
Model: TYAA23 Beam flange size options:
From 2.5 up to 12 inch (63.5 - 300mm)
From 2.5 up to 18 inch (63.5 - 450mm)
From 2.5 up to 24 inch (63.5 - 600mm)
Minimum Breaking Strength: 22.3 kN (5,000 lb/2.27 tonne)
Capacity: 140kg Documentation: CE Marked and comes with Certification -
Specification sheet:
