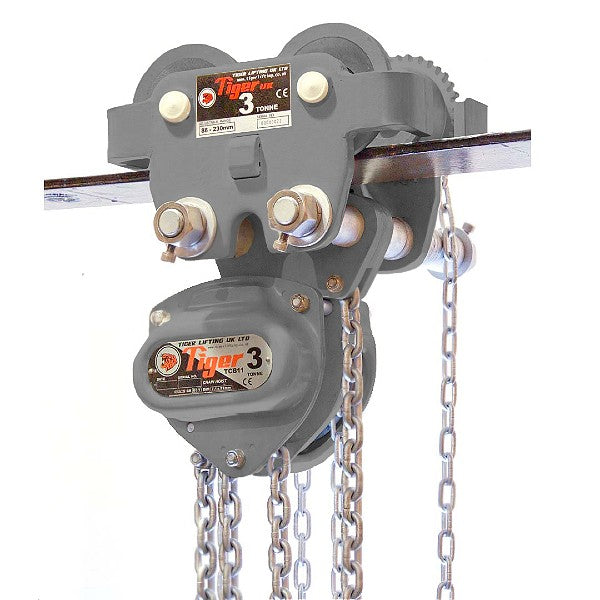

The Tiger Corrosion Resistant CCBTP Combined Chain Block & Push Trolley is fitted with critical components, including the hand chain and the pinion gear for chain blocks and geared trolleys, which are protected by our unique corrosion protection finish giving unprecedented long-term reliability. Stainless steel fittings are used throughout. These ensure the initial capital outlay of purchasing a Tiger corrosion resistant combination unit is protected by allowing the statutory inspections and re-certifications to be easier and also help with the overall aesthetics of the trolley being maintained in an "as new" condition. The Tiger CCBTP resistant combined chain hoists and trolleys are finished in our high quality powder coat paint offering excellent additional corrosion protection and a high degree of impact protection.
Features: • Range from 500kg to 35.0t. • Ideal for locations where headroom is limited. • Geared and plain trolley versions available. • Can be chained up to meet your specific requirements. • Twin bar or single bar trolley options. • Corrosion or spark resistant versions available. • Chain Carrier available - Extended beam width available. Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Capacity | Clamp Width Options:
500kg | From 80mm up to 128mm 500kg | From 80mm up to 203mm 1000kg | From 80mm up to 128mm 1000kg | From 80mm up to 203mm 2000kg | From 112mm up to 154mm 2000kg | From 112mm up to 230mm 3000kg | From 111mm up to 153mm (single fall) 3000kg | From 111mm up to 230mm (single fall) 3000kg | From 105mm up to 153mm (twin fall) 3000kg | From 105mm up to 230mm (twin fall) 5000kg | From 126mm up to 194mm 5000kg | From 126mm up to 305mm
Height of Lift:
3 meter 4 meter 5 meter 6 meter 7 meter 8 meter 9 meter 10 meter
CE Marked and comes with Certification
