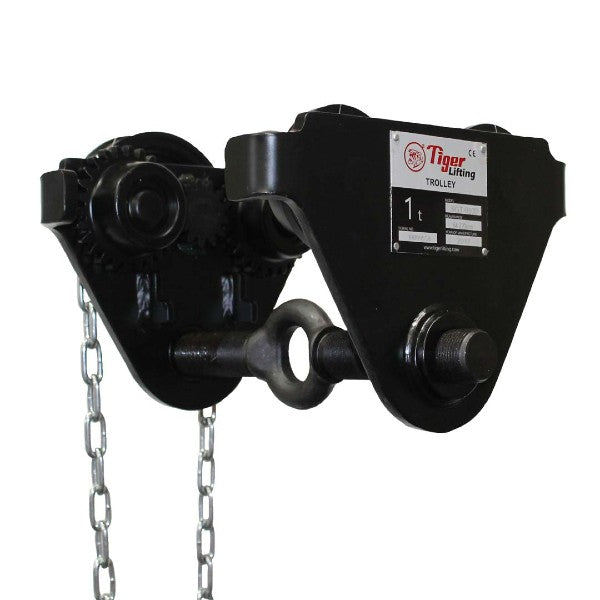

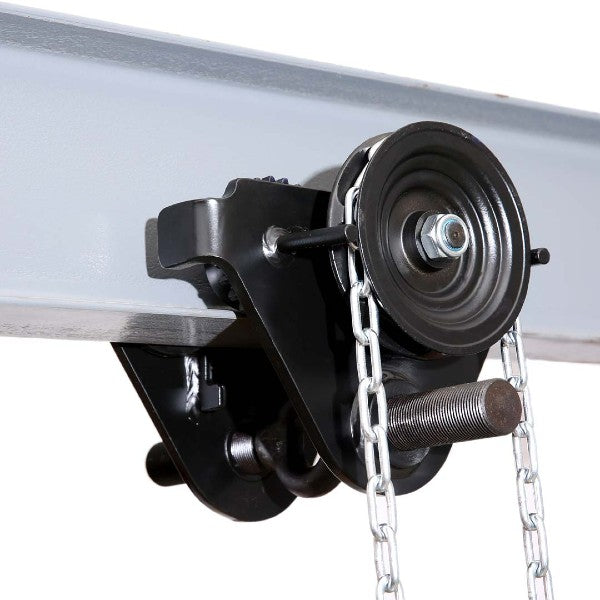

The Tiger SGT Screw Bar Geared Trolley is a geared type trolley with hand chain length to suit your requirements. The wheels run on sealed bearings for smoother rolling with less effort and maintenance. Like all our Gear Beam Trolleys, this screw bar geared trolley is certified and comes with documentation.
Features & benefits:
• Range from 500kg to 5t.
• Geared type with hand chain length to suit your requirements.
• The 4:1 factor of safety allows for use with manual or powered hoists.
• The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers.
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Model: SGT Capacity | Clamp Width Options: 500kg | From 50mm up to 220mm
1 tonne | From 64mm up to 220mm
2 tonne | From 88mm up to 220mm
3 tonne | From 102mm up to 220mm
5 tonne | From 114mm up to 220mm
Hand Chain Length Options: 2.5 meter
Chain Material: Galvanized Hand Chain Documentation: CE Marked and comes with Certification
