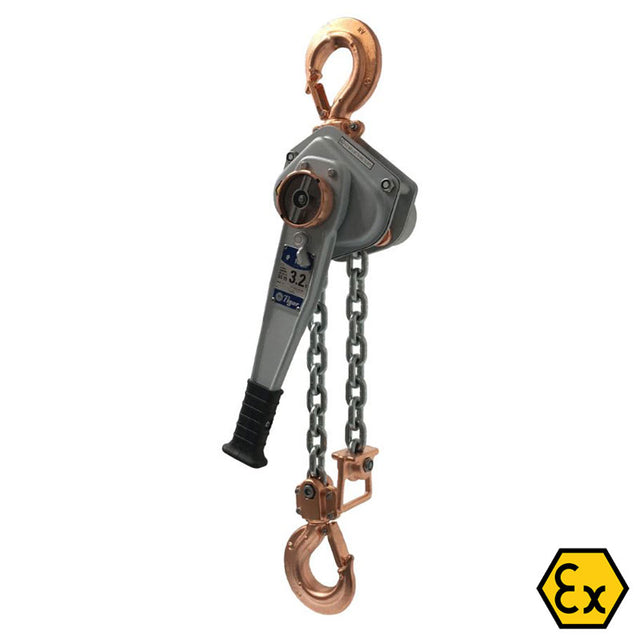

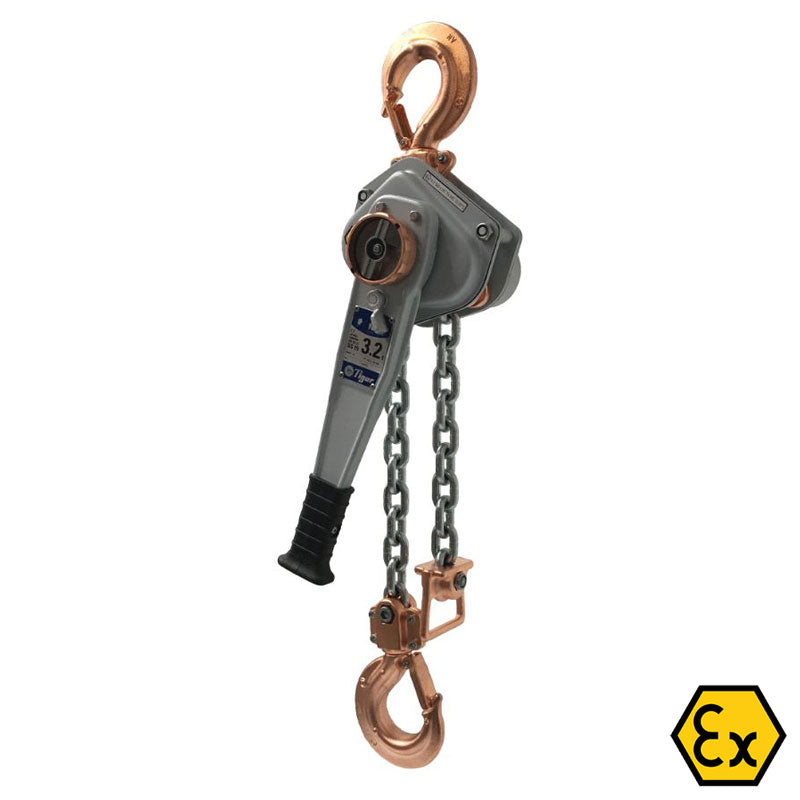

The Tiger Spark Resistant XSS SS19 lever hoists are developed for the use in potentially explosive atmospheres (ATEX zones). In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones, which this product is in accordance with.
- Corrosion protected load chain
- Special corrosion protected coated body Marine specific friction discs
- Brake chamber protection from outside contamination

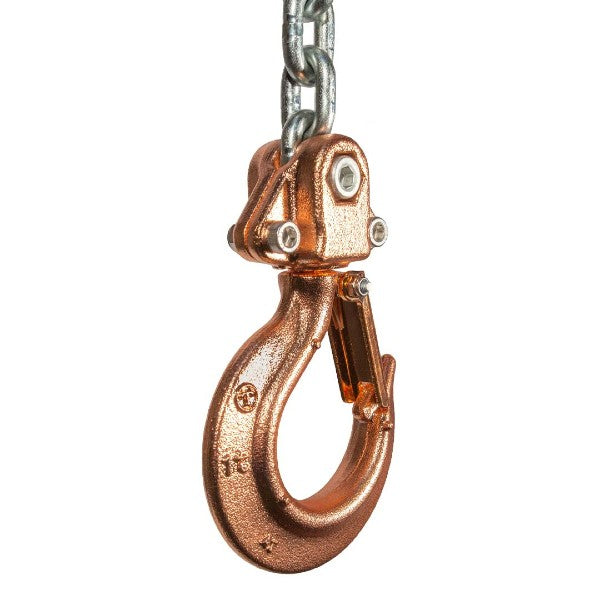

- Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage
- Stainless steel fixings and fasteners Lever hoist also available using the PROLH unit and standard load chain
- Optional Stainless steel load chain Overload protection device Chain container
- ATEX marking: Ex II 2 GD c IIC T4 IIIC T135°C. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).
Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 2014/34/EU and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record.
Model: SS19 XSS ATEX rating: EX II 2 GD c IIC T4 IIIC T135°
(Zone 1/21 & 2/22)
Working Load Limit Options: 800kg
Height of lift Options: 1.5 meter
Documentation: CE Marked and comes with Certification
