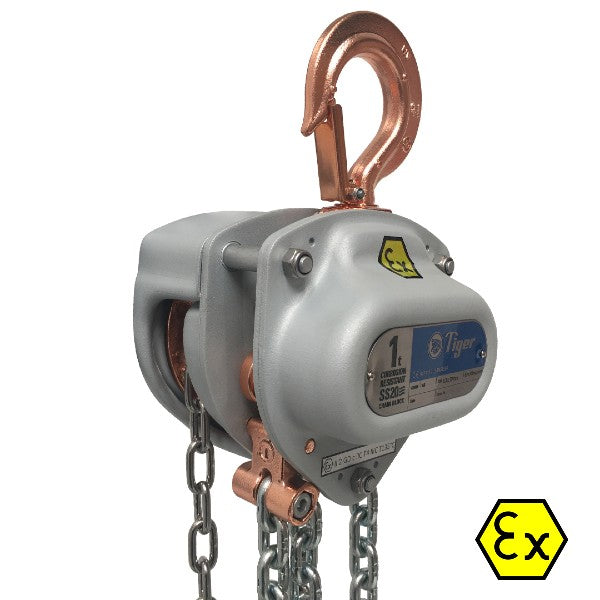

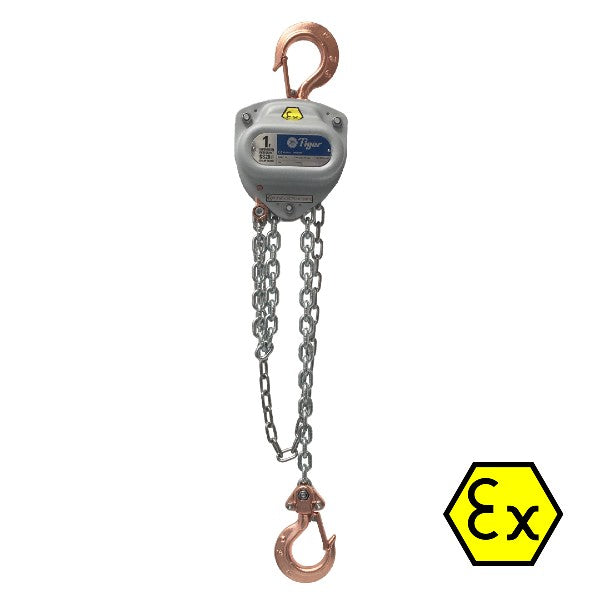

The Tiger Spark Resistant XCB SS20 chains hoists are developed for the use in potentially explosive atmospheres (ATEX zones). In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones, which this product is in accordance with.
• Stainless steel hand chain.
• Corrosion protected load chain.
• Special corrosion protected coated body..
• Marine specific friction discs
• Brake chamber protection from outside contamination.

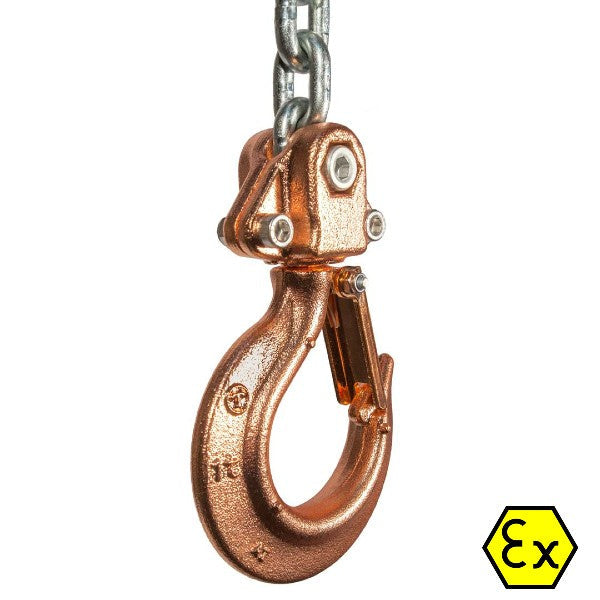

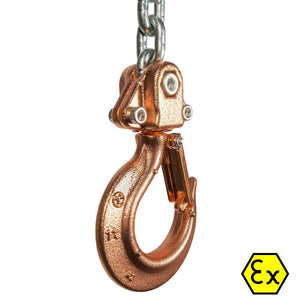

• Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage.
• Stainless steel fixings and fasteners.
• Optional Stainless steel load chain..
• Overload protection device Chain container.
15000kg, 20000kg and 30000kg options are available on request
Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 2014/34/EU and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record.
Model: XCB ATEX rating: EX II 2 GD c IIC T4 IIIC T135°
(Zone 1/21 & 2/22)
Working Load Limit Options: 500kg
Height of lift Options: 3 meter
Documentation: CE Marked and comes with Certification
