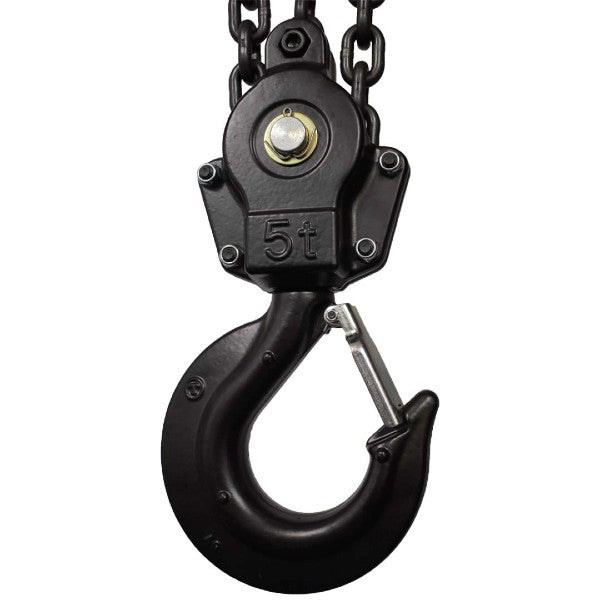

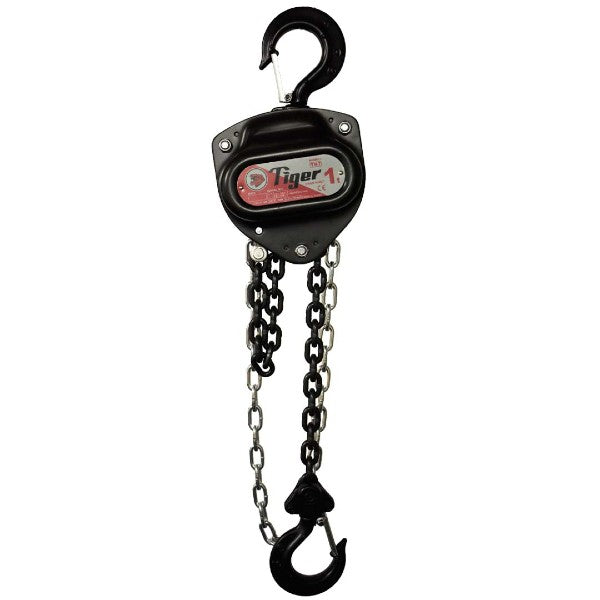

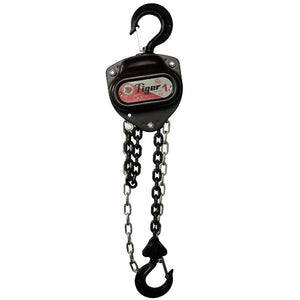

Tiger TRCB Industrial Manual Chain Hoists are manufactured from the highest quality materials precisely machined, thus offering a lightweight, compact and rugged construction; producing an exceptionally strong product resistant to impact damage. The especially low headroom allows for easy installation in the most restricted environments and all units come with drop forged and heat treated alloy hooks. The highly efficient brake systems work instantly when the operation is stopped and securely holds the load. Loads are lowered under perfect control, allowing for precise operations. Tiger chain blocks easily pass the brake lock out test as per BS 3243:1990 with a 2% load of the rated capacity. PROCB and SS20 are available with forged clevis adaptor components. They can be chained to any height of lift to meet exact requirements and individual spares are readily available. The PROCB/SS20 chain block top hook can be replaced by a competent person so the block can be directly fitted to our beam trolley range of the equivalent capacity achieving the lowest possible headroom.
- Range from 500kg-5.0t
- Safe and reliable twin pawl mechanical brake
- Operating temperature -25°C to +80°C
- Double cover protection for break cover
All chain blocks meet or exceed all international standards within BS EN 13157:2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594.
Model: TRCB Working Load Limit Options: 500kg
Height of Lift Options: 3 meter
Documentation: CE Marked and comes with Certification
