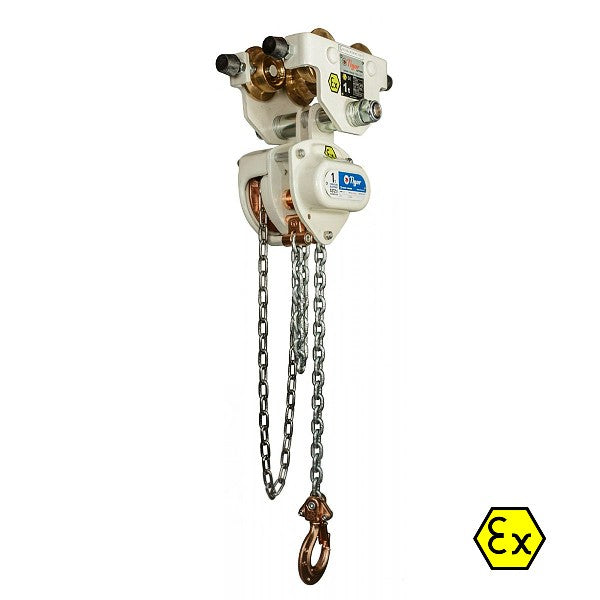

Tiger XCCBTG Spark Resistant Combined Chain Block & Geared Trolley are developed for the use in potentially explosive atmospheres (ATEX zones). In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones, which this product is in accordance with. Like all our Combined Chain Hoists, this Tiger XCCBTP Spark Resistant Combined Chain Block & Geared Trolley is CE Marked and comes with Certification.
Features: • Category II – high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C Special coated units. • Copper plated suspension and load hooks, load chain guides, grip rings, hand wheels and end anchorage. • Manufactured in accordance with ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC. • Different capacities and heights of lift to suit your specific requirements. • Stainless steel fixings and fasteners. • Developed for the use in potentially explosive atmospheres (ATEX zones). • Available with stainless steel load chain. • Solid bronze trolley wheels.
EX II 2 GD c IIC T4 IIIC T135° (Zone 1/21 & 2/22)
Capacity | Clamp Width Options:
500kg | From 80mm up to 128mm 500kg | From 80mm up to 203mm 1000kg | From 80mm up to 128mm 1000kg | From 80mm up to 203mm 2000kg | From 112mm up to 154mm 2000kg | From 112mm up to 230mm 3000kg | From 111mm up to 153mm (single fall) 3000kg | From 111mm up to 230mm 5000kg | From 126mm up to 194mm 5000kg | From 126mm up to 305mm 10000kg | From 125mm up to 320mm
Height of lift options:
3 meter 4 meter 5 meter 6 meter 7 meter 8 meter 9 meter 10 meter 11 meter
CE Marked and comes with Certification
