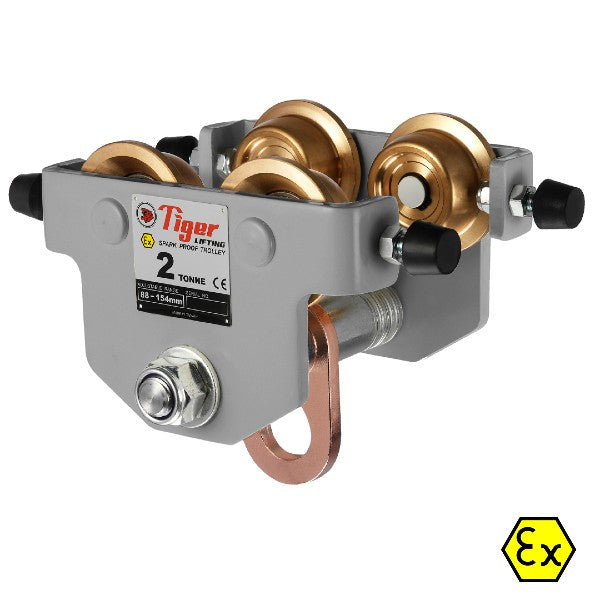

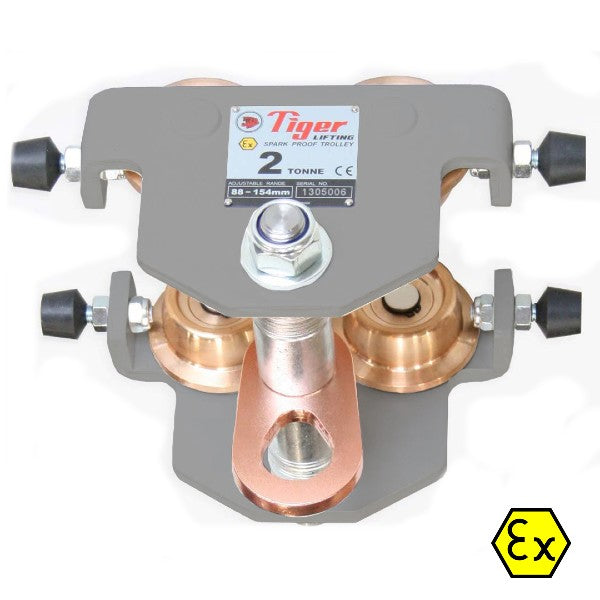

The Tiger XTG Spark Resistant Gear Trolleysare developed for the use in potentially explosive atmospheres (ATEX zones). In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones, which this product is in accordance with.
Features & benefits: • The anti-drop plates design ensures extra safety and prevents damage to the wheels when contacting end rail stoppers. • Extended beam width available. • Corrosion or spark resistant versions available. • Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading. • The wheels run on sealed ball bearings for smoother rolling with less effort and maintenance. • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option). • Optional beam locking device. • The 5:1 factor of safety allows for use with manual or powered hoists.
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Contact us for higher capacities.
EX II 2 GD c IIC T4 IIIC T135° (Zone 1/21 & 2/22)
Capacity | Clamp Width Options:
500kg | From 62mm up to 128mm 500kg | From 62mm up to 203mm 1000kg | From 62mm up to 128mm 1000kg | From 62mm up to 203mm 2000kg | From 88mm up to 154mm 2000kg | From 88mm up to 230mm 3000kg | From 87mm up to 153mm 3000kg | From 87mm up to 203mm
Height of Lift Options:
3 meter 4 meter 5 meter 6 meter 7 meter 8 meter 9 meter 10 meter 11 meter 12 meter
CE Marked and comes with Certification
