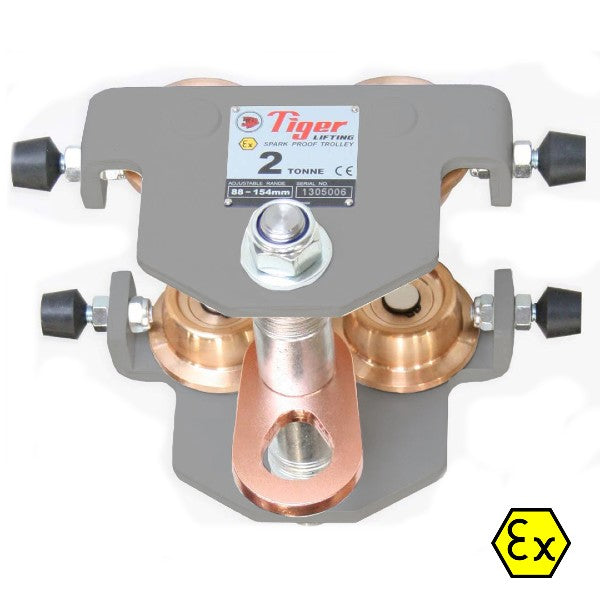

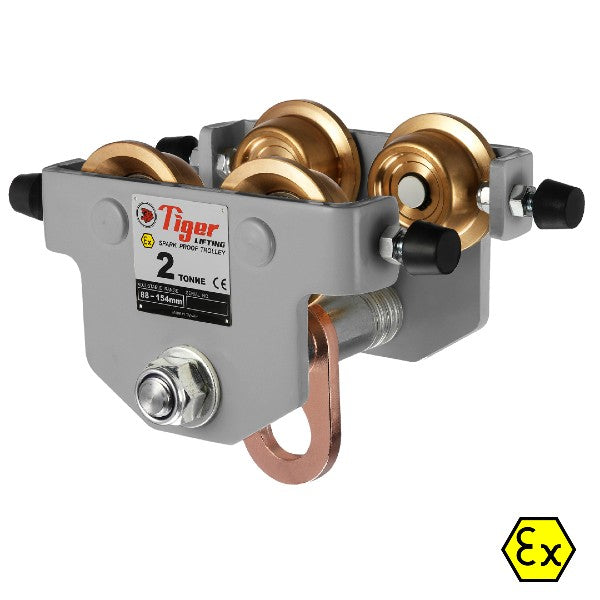

The Tiger XTP Spark Resistant Push Trolley is developed for the use in potentially explosive atmospheres (ATEX zones). In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones, which this product is in accordance with. Like all our Push Beam Trolleys, these spark resistant push trolleys are certified and come with documentation.
Features & benefits:
• The anti-drop plates design ensures extra safety and prevents damage to the wheels when contacting end rail stoppers.
• Extended beam width available.
• Corrosion or spark resistant versions available.
• Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading.
• The wheels run on sealed ball bearings for smoother rolling with less effort and maintenance.
• Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option).
• Optional beam locking device
• The 5:1 factor of safety allows for use with manual or powered hoists.
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Contact us for wider beam widths.
Model: XTP ATEX rating: EX II 2 GD c IIC T4 IIIC T135°
(Zone 1/21 & 2/22)
Capacity | Clamp Width Options: 0.5 tonne | 62mm - 128mm
0.5 tonne | 62mm - 203mm
1 tonne | 62mm - 128mm
1 tonne | 62mm - 203mm
2 tonne | 88mm - 154mm
2 tonne | 88mm - 230mm
3 tonne | 87mm - 153mm
3 tonne | 87mm - 203mm
5 tonne | 106mm - 194mm
5 tonne| 106mm - 305mm
10 tonne | 125mm - 320mm
15 tonne | 150mm - 320mm
Documentation: CE Marked and comes with Certification
