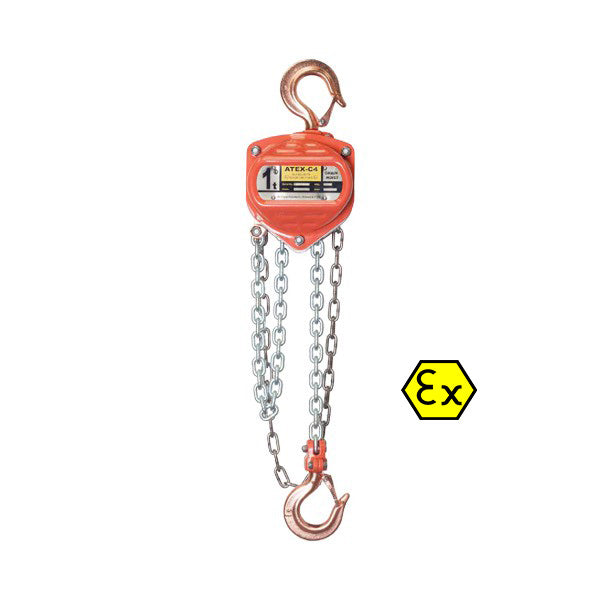

Features & benefits of the William Hackett ATEX-C4 chain hoist with Stainless Steel Hand Chain include:
• This product has a working load limit range from 500kg to 5 tonnes. There are other sizes available upon request.
• Its light load capability is tested and certified at 2% of the chain hoist rated capacity, with a twin pawl fitted as standard. It has a safety factor of 4:1.
• Safety latches: hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure.
• The hook overload and traceability mark hooks have overload indicator marks either side of the hook throat (500kg to 5t). Both top and bottom hooks are embossed with a batch code, manufacturer's mark and the working load limit for full traceability and compliance to international standards.
• The ATEx-C4 has a hand chain joiner, which is used as a quick and secure method of joining the hand chain. This hand chain is fitted with Grade 316L stainless steel hand chain. With its hook housing secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.
• In relation to fleeting and cross hauling, this product has been independently tested (test report 2550-7615) for fleeting or cross hauling applications up to 45° from the vertical without deration of the WLL.
• The load chain is fitted with zinc plated load chain that fully complies with international standard BS EN818-7. With an option of calibrated Grade S (6) 316L stainless steel load chain.
• This product has a temperature range from -20°C to +135°C.
• ATEX-C4 has specific internal components which are corrosion protected. in addition to this hoists are proof tested to 1.5 times the Working Load Limit.
Overload Limiter: available as an option upon request.
Brand: Model: WH-C4 ATEX ATEX rating: EX II 2 GD c IIC T4 IIIC T135°
(Zone 1/21 & 2/22)
Length of Load Chain Options: From 3 meter up to 9 meter Documentation: CE Marked and comes with Certification
