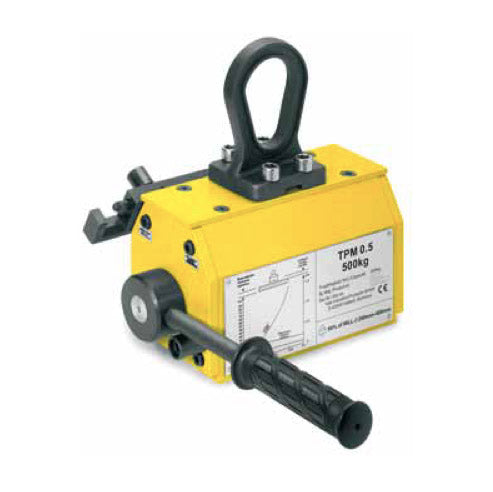

Yale TPM Permanent Lifting Magnets

✔ In Stock
✔ Typically dispatched within 1 to 2 working days*
✔ A VAT Invoice will be emailed with your order
✔ Comes with Test Certificate

SKU: TPM 0.1


ex vat


The Yale TPM Permanent Lifting Magnets in Ireland are one of the best Lifting Magnets available. TPM load lifting magnets are ideal tools for easy, quick and thus economical transport of heavy objects made of ferro-magnetic material. Typical operating areas are workshops and warehouses, loading and unloading of machines as well as construction of jigs and fixtures. Compact design of the units for a large number of applications. The load is not affected mechanically, which allows lifting of flat as well as round material. The efficient magnet body provides strong lifting capacity at low dead weight. The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use. The magnets are activated /deactivated easily by turning a locking lever. In activated condition the hand lever will be safely locked and thus prevent unintended demagnetising. The selection of the appropriate magnet model should be made under consideration of the varying conditions of the contact surface, kind of material alloy and plate thickness /bar diameter. In order to achieve a maximum capacity, the contact surface should be bright and free from dirt, oil, grease, scale, corrosion, paint etc.


    Comes with Certification

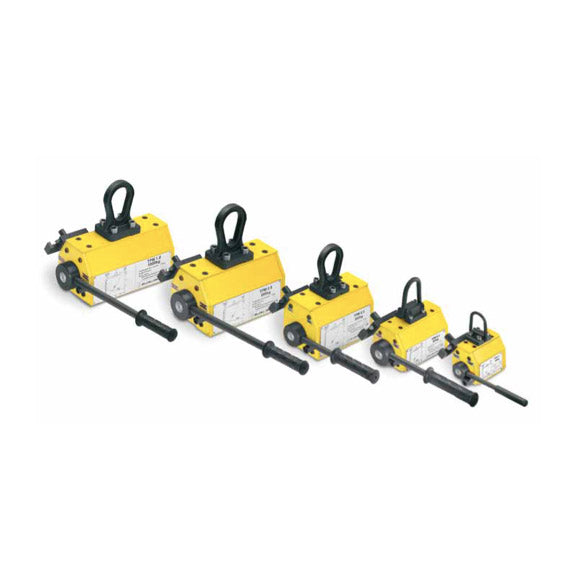

    Capacities & Models:

    100kg | TPM 0.1

    300kg | TPM 0.3

    500kg | TPM 0.5

    800kg | TPM 0.8

    1000kg | TPM 1.0

    2000kg | TPM 2.0

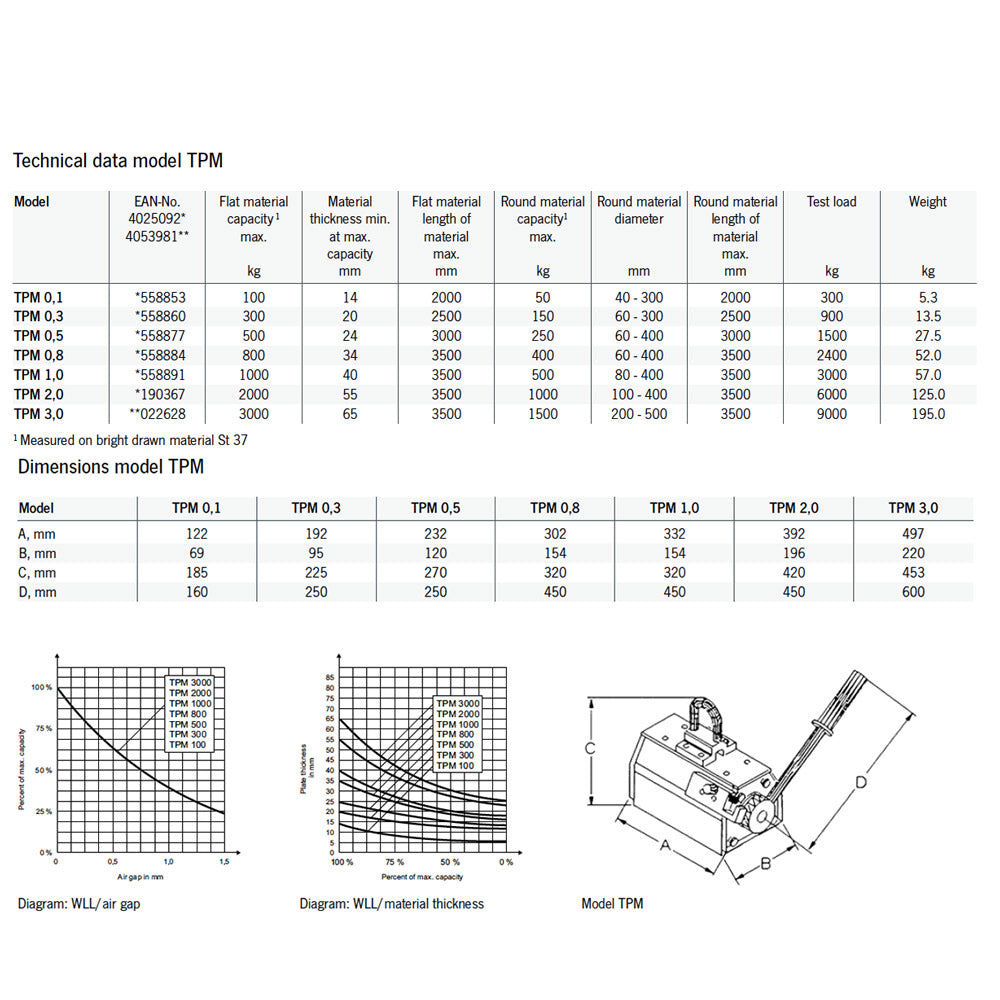

    Specification sheet: pdf
