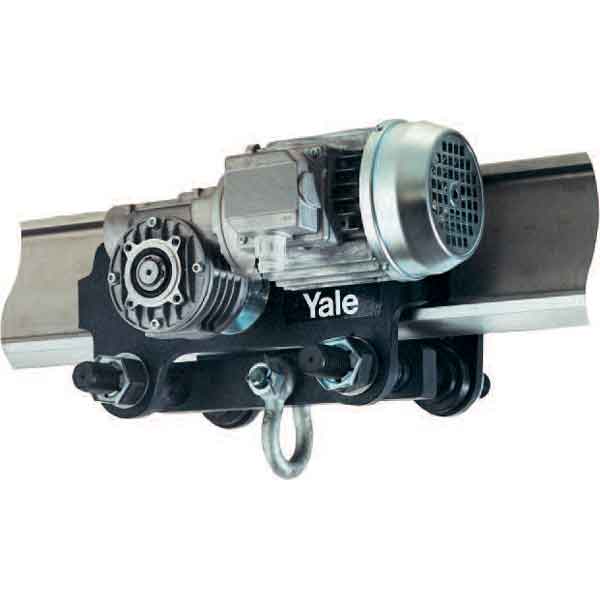

The Yale VTE-U electric travel trolleys are specially recommended for loads over 1000kgs, for transporting over long distances, and/or for frequent use. Suitable for almost all hoists with suspension hook, due to Yale’s universal shackle connection. Travel motor with worm gear transmission ensures smooth start and self braking - a separate motor brake is not required.
Low voltage control 42v.
Standard operating voltage 400v 3ph 50Hz.
(110v and 230v 1ph 50Hz trollies are also available.
Motors protected to IP 55 against dust and water jets.
Push-button pendant control IP65.
Compact, robust frame with low overall height.
Wheels manufactured from fracture-proof steel.
Smooth running due to machined surfaces and ball bearing mounting.
Cambered wheel profile suitable for flat and inclined beam profiles.
Anti-drop and anti tilt devices as standard.
Easily adjustable to fit a wide range of beam widths and profiles via due to threaded load bars.
Rubber buffers available as optional extra.
Travel limit switches also available.
Brand: Beam width options:
Capacity options: From 1000kg up to 3000kg Control options:
With low voltage controls
With PCB controls
Documentation: CE Marked and comes with Certification
