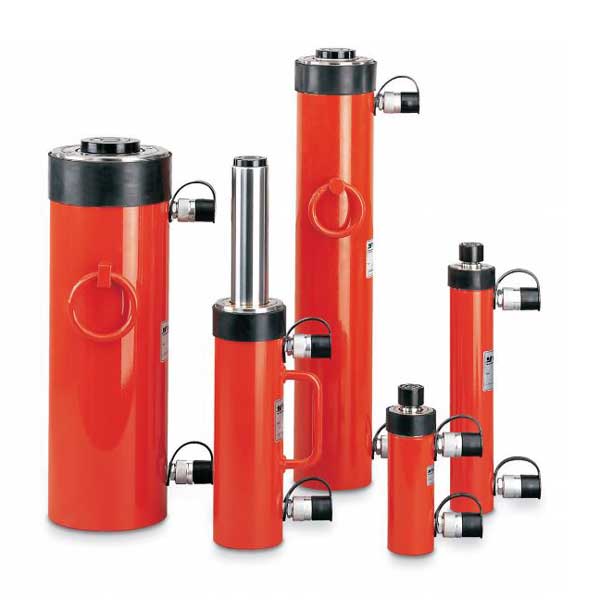

Yale YH Double-Acting Hydraulic Cylinders

✔ In Stock
✔ Typically dispatched within 1 to 2 working days*
✔ A VAT Invoice will be emailed with your order
✔ Comes with Test Certificate

SKU: YH 5/30

Price:
€331

ex vat

Description

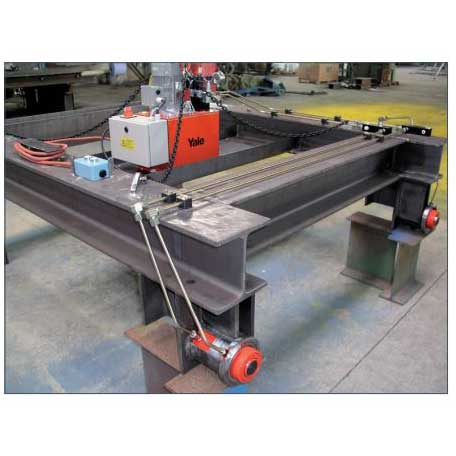

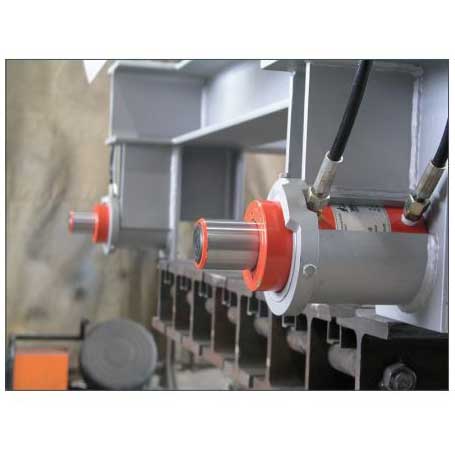

Yale YH double-acting hydraulic cylinders in Ireland are extremely robust cylinders especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed. Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required.

Features and benefits include:
  • Yale ChroMo-Design.
  • Operating pressure maximum 700 bar.
  • Double-acting with hydraulic return.
  • Long bronze piston guidings.
  • Piston strokes from 30 up to 500mm.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Double bronze bearing of the hard chromium plated piston.
  • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod.
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against dirt.
  • Oil port thread 3/8 NPT.
  • Includes 2 female coupler halves model CFY-1.
  • From model YH-30/200 with carrying handle.
  • From model YH-50/350 with 2 lifting rings.

    Specifications

    Specification sheet: pdf
    Brand:
    Origin: United Kingdom
    Model number:  YH
    Capacity options: From 5 ton up to 100 ton
    Documentation: CE Marked and comes with Certification
