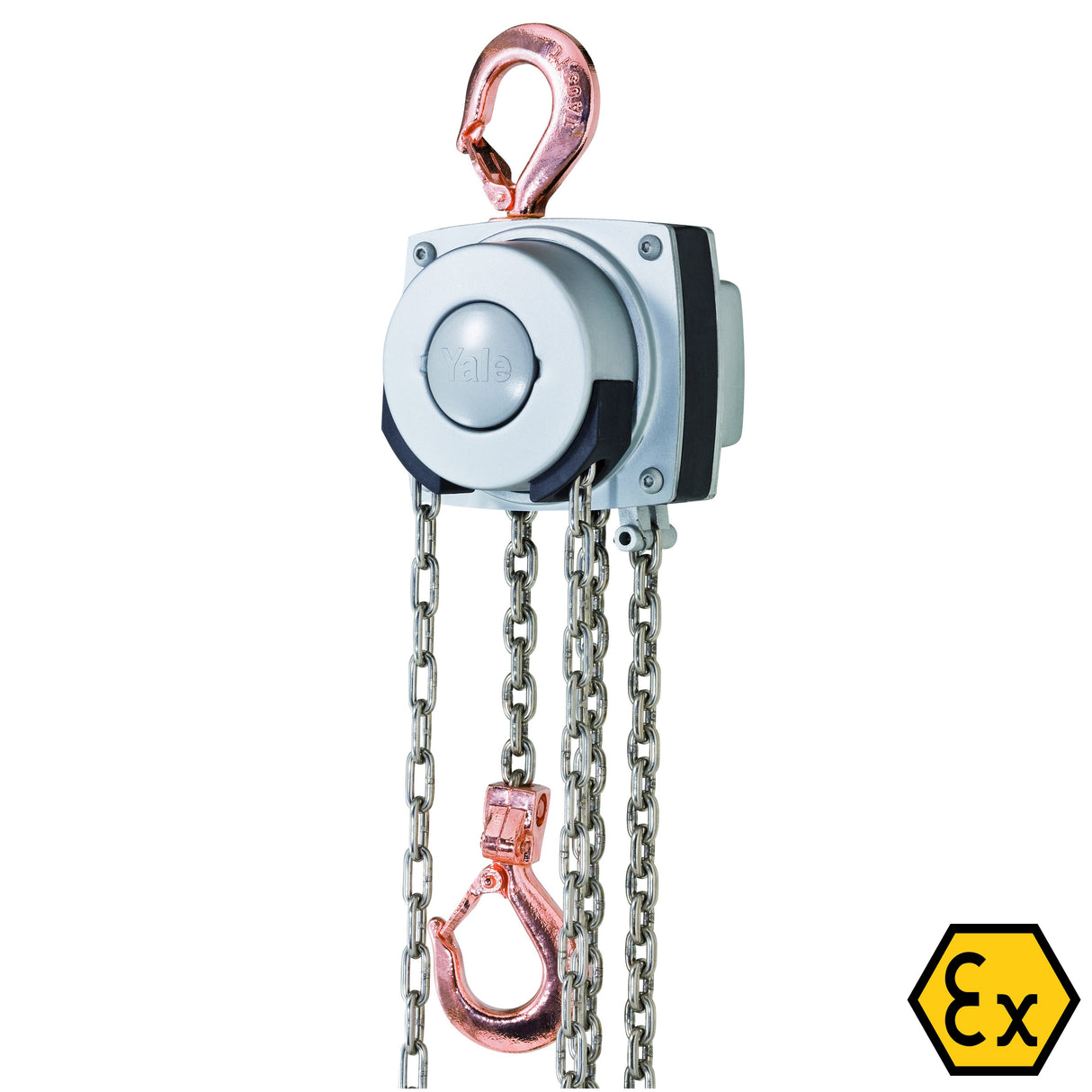

Yalelift ATEX 360 Manual Chain Block Hoists

✔ In Stock
✔ Typically dispatched within 1 to 2 working days*
✔ A VAT Invoice will be emailed with your order
✔ Comes with Test Certificate

SKU: YL ATEX 360 500kg 3m

Price:
€991

ex vat

Description

The Yalelift ATEX 360 manual chain block hoist in Ireland is ideal for use in an environment that requires explosion protection. On the basis of the European Directive 94/9/EG this model series has been further developed for the use in potentially explosive atmospheres (ATEX zones).

Features include:

  • The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
  • The extremely low headroom allows maximum use of the lifting height.
  • The revolutionary 360 degrees rotating hand chain guide allows the operator to work from virtually any position, in confined spaces or above the load.
  • The Yalelift can even be operated from the side of the load which also makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.
  • The brake system is extremely quiet and guarantees operational safety and improved serviceability due to omission of the vulnerable ratchet pawls. All parts are made of high quality materials, additionally zinc-plated or yellow-chromated to increase corrosion prevention.
  • Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions the internal gearbox remains protected.
  • The hardened load sheave with four precision machined pockets ensures accurate movement of the load chain.
  • The surface protected zinc-plated alloy steel load chains fulfil all requirements of current national and international standards and regulations. They are matched perfectly to the load chain sheave and guarantee smooth and precise chain motion.

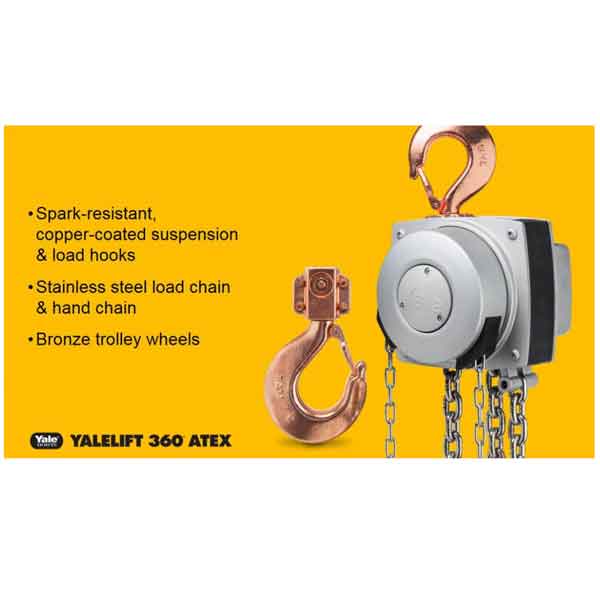

  • Drop forged load and suspension hooks that yield under overload instead of breaking, are made of high tensile steel. The hooks are fitted with robust safety latches and rotate 360 degrees.
  • Explosion protected version with spark resistant coating.
  • Copper-coated suspension and load hooks.

Specifications

Specification sheet: pdf
Brand:
Yale Manual Chain Hoists
Origin: United Kingdom
ATEX Rating:
EX II 2 GD c IIB T4 (Zone 1/21 & 2/22)
Capacity options : 500kg up to 20,000kg
Length of Load Chain Options: From 3 meter up to 12 meter
Documentation: CE Marked and comes with Certification
